| Color: | Orange | Material: | Q345B |
|---|---|---|---|
| Capacity: | 35ton + 35ton / 16ton / 10ton | Span: | 45m - 53m |
| Lifting Height: | 16m - 25m | Cantilever: | Optional |
| Duty Group: | ISO M7 - ISO M8 | Power Supply: | 220 - 600V, 50 - 60Hz |
| Highlight: | double girder gantry crane |
||

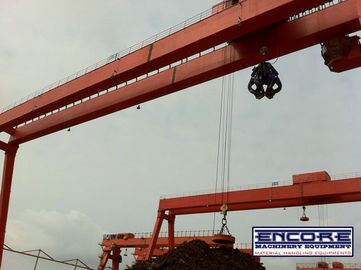

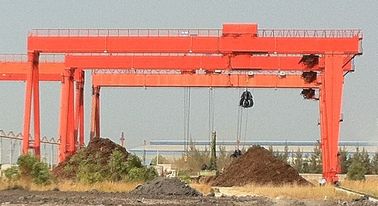

35 ton + 35 ton and 16 ton / 10 ton Heavy Duty Grab Bucket & Magnetic Chuck Electric Gantry Crane For Scrap Yard
General working procedure
- Unload the scrap in the container
- Trolley A & B lift up container by the 2 synchronized hook. Then one hook moves up. So the container tilted and the crap steel inside falls out

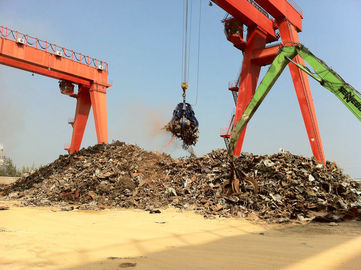

- Grab & magnet plate for scrap handling
Trolley A’s hoist mechanism: Trolley B’s hoist mechanism:
Hook + grab Hook + magnet plate
Specifications:
|
General Technical Specifications of Gantry Crane |
||||||||
|
|
Hook A |
Magnet |
Hook B |
Grab |
|
Trolley A |
Trolley B |
Long Travel |
|
Capacity (t) |
35 |
10 |
35 |
16 |
Duty classification |
M6 |
M6 |
M6 |
|
Hook path (m) |
20 |
|||||||
|
Duty classification |
M8 |
M6 |
M8 |
M8 |
Lifting speed (m/min) |
4~40 |
4~40 |
5~50 |
|
Lifting speed (m/min) |
|
|
|
|
||||
|
Power Supply |
3 Phase AC 380 V |
|||||||
|
Technical Parameter Table for Grab |
|||
|
Item |
Parameter |
Item |
Parameter |
|
Volume |
3.2 m3 |
Voltage |
380V, 50Hz |
|
Level of antisepticise |
F2 |
Level of Protection |
IP 55 |
|
Motor output power |
37 kw |
Motor input power |
45 kw |
|
Insulation class |
F |
Dead Weight |
2190 kg |
|
Open height |
3590 mm |
Close height |
3740 mm |
|
Open width |
4230 mm |
Close width |
2580 mm |
|
Close time |
16 S |
Open time |
9 S |
|
Technical Parameter Table for Magnet |
|||
|
Item |
Parameter |
Item |
Parameter |
|
Diameter |
φ220mm |
Type |
MW5-220L/1 |
|
Voltage rating |
220 V |
Electric current |
98.5 A |
|
Consumed power |
30 kw |
Dead Weight |
7.5 ton |
|
Capacity per times |
1.2~3 ton/times |
TD |
50% |
|
Technical Parameter Table for Battery of Magnetic chuck |
|||
|
Input voltage |
AC 380 V |
Output voltage |
DC 220 V |
|
Output current |
150 A |
Power rating |
30 kw |
|
Valid time |
20 minutes |
Other components |
Optical alarm device & Program control |
Competitive Advantage:
- Qualified for heavy duty work.
- 8 sets of end carriages distribute wheel load. The cost of ground foundation will be saved
- Equipped the water-proof cover at end carriage. Free from weather effect.
- The grab with heavy dead weight. Could sink deeply into crap steel. High productivity.
- Air conditioning inside main girder. Electric cabinets which placed inside the main girder are
always cooled
