Product Details:
Payment & Shipping Terms:
|
Material: | Q235B | Capacity: | 2 - 25 Ton |
---|---|---|---|
Lifting Speed: | Single Speed, Double Speed, Frequency Controlled Speed | Rope Reeving: | 2/1 , 4/1 , 4/2 |
Lifting Height: | 4 M - 30 M | Supply Power: | 220 - 600 V , 50 - 60 Hz |
High Light: | electric lifting hoist,overhead hoist systems |
3 Ton Safe Driving Foot Mounted Hoist 240v Adjustable Speed , Hoisting Equipment
Detailed Product Description

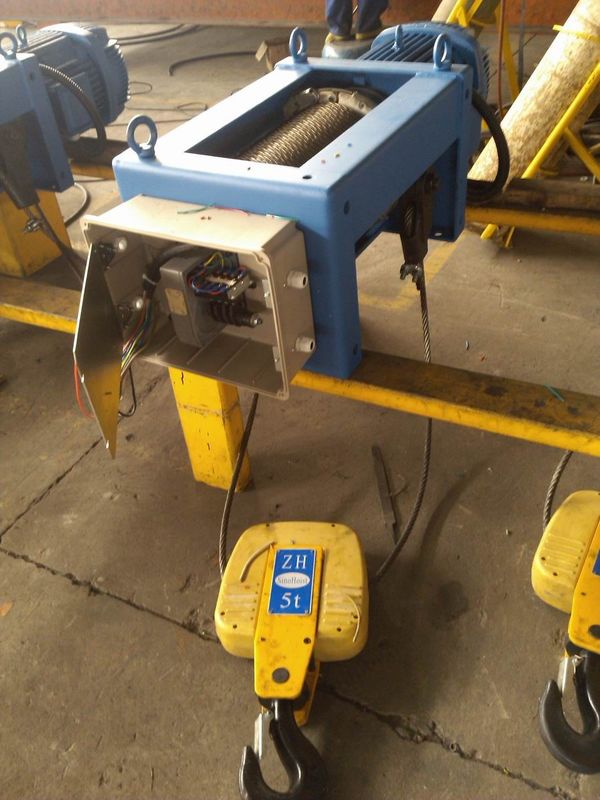

ZH - Type Electric Wire Rope Hoist
It is developed by the technologies from Germany. The product, with long-tested quality, has compact structure and European design. The type of the hoisting wire rope is GB8918, 6x36SW+FC, 6x36SW+IWR, 18x7+FC, which ensure the high strength and durability. The square structure frame of the hoist is mainly composed of Q235-B welded steel. The rope guider can meet the requirements of different directions roping or multi-direction roping at the same time. The planetary gearbox is inside the hoisting drum. The high efficient motor has single speed, double speeds or variable speeds if the client needs. This hoist is safe and durable with overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Competitive Advantages
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Single speed, double speed or variable speed if client request.
- Convenient maintenance.
- Overload protection device.
- Easy assembly and convenient installation
- Superior heat dissipation performance
Applications
ZH – Type Foot – Mounted Hoist is widely used in light duty industry, heavy duty industry, ship building, modern material handling industry and metallurgy industry, etc.
Higher Security and Reliability
1. Brake and overload protection ensure the safety under any circumstance, no slip under load
2. The optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low-voltage protection ensures the safe and reliable operation.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.
6. Long service life.
Specifications
Capacity |
2 Ton – 25Ton |
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-50 degrees |
|
Power Supply |
220-600V, 50-60 Hz |
|
Rope Reeving |
2/1, 4/1, 4/2, etc. |
|
Pendant control or remote control push button |
Included |
Technical Data Of Foot - Mounted Electric Wire Rope Hoist
Type |
Capacity |
Lifting speed |
Rope |
Working |
Hmin |
L,L0,A2 |
A1 |
Weight |
A |
H |
|||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
||||||||||
ZH320G |
3.2 |
8, 8/2.0 |
2/1 |
M4 |
570 |
— |
1165 |
1275 |
1385 |
1495 |
1605 |
1825 |
2045 |
152 |
270 |
425 |
345 |
4 |
6.3, 6.3/1.6 |
2/1 |
M3 |
||||||||||||||
3.2 |
8, 8/2.0 |
4/2 |
M4 |
460 |
1385 |
1495 |
1605 |
1825 |
2045 |
2170 |
2550 |
— |
— |
350 |
|||
4 |
6.3, 6.3/1.6 |
4/2 |
M3 |
||||||||||||||
5 |
4, 4/1.0 |
4/1 |
M5 |
500 |
1275 |
1385 |
1605 |
1825 |
2045 |
— |
— |
— |
196 |
430 |
|||
6.3 |
4, 4/1.0 |
4/1 |
M4 |
||||||||||||||
8 |
3.2, 3.2/0.8 |
4/1 |
M3 |
||||||||||||||
ZH500G |
5 |
8, 8/2.0 |
2/1 |
M4 |
660 |
— |
1230 |
1335 |
1445 |
1555 |
1660 |
1875 |
2090 |
175 |
390 |
500 |
415 |
6.3 |
6.3, 6.3/1.6 |
2/1 |
M3 |
||||||||||||||
5 |
8, 8/2.0 |
4/2 |
M4 |
500 |
1445 |
1555 |
1660 |
1875 |
2090 |
2205 |
2530 |
— |
— |
560 |
|||
6.3 |
6.3, 6.3/1.6 |
4/2 |
M3 |
||||||||||||||
8 |
4, 4/1.0 |
4/1 |
M5 |
650 |
1335 |
1445 |
1660 |
1875 |
2090 |
— |
— |
— |
241 |
720 |
|||
10 |
4, 4/1.0 |
4/1 |
M4 |
||||||||||||||
12.5 |
3.2, 3.2/0.8 |
4/1 |
M3 |
||||||||||||||
ZH1000G |
10 |
6.3, 8, 10, 6.3/1.6 |
2/1 |
M4 |
820 |
— |
1440 |
1495 |
1600 |
1705 |
1805 |
2015 |
2225 |
195 |
600 |
660 |
550 |
12.5 |
6.3, 8 |
2/1 |
M3 |
||||||||||||||
10 |
6.3, 8, 10, 6.3/1.6 |
4/2 |
M4 |
610 |
1600 |
1705 |
1805 |
2015 |
2225 |
2330 |
2635 |
— |
— |
750 |
|||
12.5 |
6.3, 8 |
4/2 |
M3 |
||||||||||||||
16 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M5 |
870 |
1495 |
1600 |
1805 |
2015 |
2225 |
— |
— |
— |
288 |
1050 |
|||
20 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M4 |
||||||||||||||
25 |
3.2, 4 |
4/1 |
M3 |
||||||||||||||
ZH1600G |
12.5 |
6.3, 8, 10 |
4/2 |
M5 |
800 |
— |
1380 |
1570 |
1760 |
1950 |
2140 |
2520 |
2880 |
|
1500 |
550 |
550 |
16 |
6.3, 8, 10 |
4/2 |
M4 |
||||||||||||||
ZH2000G |
20 |
5, 6.3, 8 |
4/2 |
M5 |
900 |
— |
1490 |
1670 |
1850 |
2030 |
2210 |
2570 |
2930 |
|
2200 |
680 |
680 |
25 |
5, 6.3, 8 |
4/2 |
M4 |
