Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Material: | Q235B |
|---|---|---|---|
| Capacity: | 3.2 Ton - 50 Ton | Lifting Height: | 4 M - 24 M |
| Duty Group: | ISO M3 - ISO M5 | Power Supply: | 220 - 600V, 50 - 60Hz |
| High Light: | industrial hoist,monorail hoist |
||
Applications:

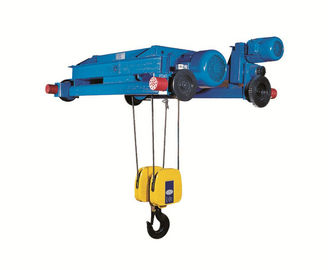

EH-Type Light-Duty Double Girder Electric Wire Rope Hoist Widely used in machinery fabrication,
metallurgical plant auxiliary workshop, storage, stock ground, and power station.
It is also can be used as regular double-girder overhead crane in textile industry or food industry.
But it is forbidden to use in inflammable, explosive or erosion environment.
Description:
EH-Type Light-Duty Double Girder Electric Wire Rope Hoist is developed by combining and applying technologies
from Germany.
Its reducer is laid inside the hoisting drum, and the modular design can realize the seamless connection with
frequency inverter system, automatic testing system and automatic weighing system.
- Rope reeving: 2/1, 4/1, 6/1, 4/2, 6/2, 8/2
- Lifting speed is Single speed, double speed, and variable frequency speed for choice
- The standard lifting height is 4, 6, 9, 12, 15, 18, 24m. The max lifting height can reach to 120m.
- The normal traveling speed is 20m/min, or 12.5,16,25,32,20/6.5 and 20/5 m/min for choice.
- Pendant control or remote control push button
|
Capacity |
3.2t-20t |
|
|
Lifting Height |
depends on your requirement |
|
|
Speed |
Lifting |
Single speed |
|
Cross Travelling |
Single speed |
|
|
Working Group |
ISO:M3/M4/M5/M6 |
|
|
Working Environment |
-25-45 degrees |
|
|
Power Supply |
220-600V, 50-60 Hz |
|
Specifications:
|
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
B B0 |
Hmin H |
Dimensions W A1 |
||||||
|
Lifting Height (m) |
|||||||||||
|
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
|||||
|
3.2 |
8,8/2.0 |
M4 |
1275 750 |
460 525 |
— |
1200 490 |
1200 435 |
1200 380 |
1400 425 |
1400 370 |
1600 360 |
|
5 |
4,4/1.0 |
M5 |
460 495 |
1200 600 |
1200 600 |
1400 665 |
1600 645 |
— |
— |
— |
|
|
6.3 |
4,4/1.0 |
M4 |
|||||||||
|
5 |
8,8/2.0 |
M4 |
1390 900 |
561 630 |
— |
1200 495 |
1200 445 |
1200 390 |
1400 440 |
1400 385 |
1600 380 |
|
8 |
4,4/1.0 |
M5 |
561 665 |
1200 600 |
1200 600 |
1400 665 |
1600 650 |
— |
— |
— |
|
|
10 |
4,4/1.0 |
M4 |
|||||||||
|
10 |
6.3,6.3/1.6 |
M4 |
1530 1000 |
570 845 |
— |
1200 500 |
1200 445 |
1200 395 |
1400 440 |
1400 395 |
1600 390 |
|
16 |
3.2,3.2/0.8 |
M5 |
645 965 |
1200 600 |
1200 600 |
1400 700 |
1600 700 |
— |
— |
— |
|
|
20 |
3.2,3.2/0.8 |
M4 |
|||||||||
Competitive Advantage:
- Reasonable structure
- Adjustable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
Safety feature:
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
