Product Details:
Payment & Shipping Terms:
|
| Model Number: | HSY | Key Word: | Electric Wire Rope Hoist |
|---|---|---|---|
| Sling Type: | Chain | Capacity: | 1 Ton - 20 Ton |
| Lifting Height: | 3m - 12m | Lifting Speed: | 1.1m/min - 7.2m/min |
| Motor Power: | 1.1kw - 6kw | Net Weight: | 47kg - 503kg |
| High Light: | Wire Rope Electric Hoist,low headroom electric hoist |
||
Hsy Model Chain Wire Rope Electric Hoist 1 Ton - 20 Ton Travelling Trolley For Industrial
Widely used in factories, mines, Bridges, construction and other work place for materials handling, equipment installation, etc. Especially be suitable for high-rise building construction and welding storage tank with a number of crane.
Products Specifications
|
MODEL No. |
Capacity (Ton) |
Lifting speed (m/min) |
Motor power (kw) |
Traveling speed (m/min) |
No. of chain |
Spec. of load chain (mm) |
Net weight (kg) |
I Steel (mm) |
|
HSY 01-01 |
1 |
6.8 |
1.5 |
Low Speed |
1 |
∮7.1 |
61 |
68-153 |
|
HSY 01-02 |
1 |
3.6 |
1.1 |
1 |
∮6.3 |
53 |
68-153 |
|
|
HSY 02-01 |
2 |
6.6 |
3.0 |
1 |
∮7.1 |
115 |
82-178 |
|
|
HSY 02-02 |
2 |
3.4 |
1.5 |
2 |
∮11.2 |
73 |
82-178 |
|
|
HSY 03-01 |
3 |
5.6 |
3.0 |
1 |
∮10.0 |
115 |
100-178 |
|
|
HSY 03-02 |
3 |
4.4 |
3.0 |
2 |
∮7.1 |
131 |
100-178 |
|
|
HSY 03-03 |
3 |
2.2 |
1.5 |
3 |
∮11.2 |
85 |
100-178 |
|
|
HSY 05-02 |
5 |
2.8 |
3.0 |
2 |
∮11.2 |
145 |
112-178 |
|
|
HSY 10-04 |
10 |
2.8 |
2×3.0 |
4 |
∮11.2 |
300 |
150-220 |
|
|
HSY 15-06 |
15 |
1.8 |
2×3.0 |
6 |
∮11.2 |
382 |
150-220 |
|
|
HSY 20-08 |
20 |
1.4 |
2×3.0 |
8 |
∮11.2 |
482 |
150-220 |
Advanctages:
1. Light weight
2. Small size limit
3. High level of work
4. Good performance, high reliablity and low failure rate
5. Chain sprocket, easy in use decidous or job-hopping, more stable
6. Work with low noise, overload ability, braking torque.
Safety Guarantee:
1. All the winch trolley are equipped with overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system and so on.
2. All operations are controlled by central control system.
Superiority:
1. We had already passed the authorization by ISO9001:2008 and CE and established a complete set of quality assurance system.
2. Under such a complete set of quality assurance systems, there is a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working out production plan, production, test and inspection, packaging, storage, delivering, trace, keep in touch with clients, etc.
3. The CNC control center and PC-based production and marketing system not only improves the working efficiency but also assures the products quality.
4. Our test lines are equipped with a large amount of online test instruments, so that they can ensure and improve the products quality.
5. We also have a complete set of equipment and techniques for testing and controlling the performance of products, which ensures our Hydraulic Scissor Platform Table quality to take a leading position among the fellow products at home and reach the international standard.

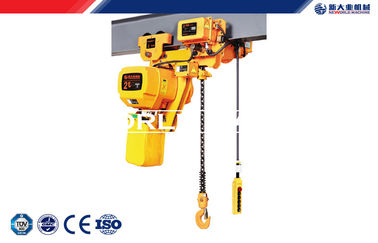

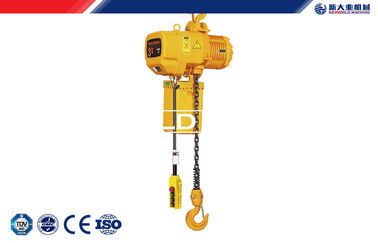

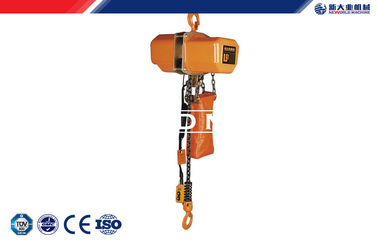

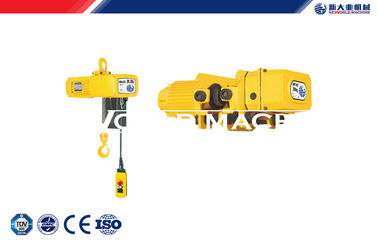

Products Show
