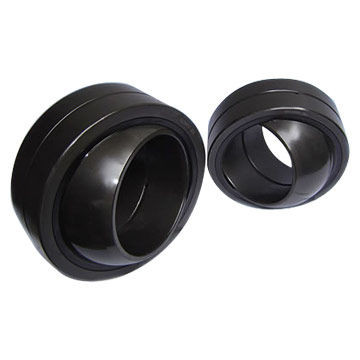

GEG60ES, GEG80ES Ball Joint Bearings of Inner And Outer Rings With Lubricating Hole
Features:
The outer ring has an axial slit.
ES type of inner and outer rings with lubricating groove and hole
2RS type of outer ring with seals at both sides
Inner and outer circle surface phosphating treatment
Advantages:
Long service life
Minimal maintenance
High operational reliability
Spherical Plain Bearings
GE...E, no lubrication oil every outer. Can bear radial load and any direction of smaller axial load.
Spherical Plain BearingsGE...ES
GE...ES type, single slit outer oil lubrication. Can bear radial load and any direction of smaller axial load.
Spherical plain bearing(GE...ES-2RS)
GE...ES - 2RS type, single slit outer oil lubrication, with seals at both. Can bear radial load and any direction of smaller axial load.
Number | Dimensions mm | Loading ratings KN | Weight ≈kg |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
d | D | B | C | dk | R1s min |
R2s min |
α° ≈ |
C1 | Co | |||
GE6E | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 | |
GE8E | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 | |
GE10E | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 | |
GE12E | 12 | 22 | 10 | 7 | 28 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 | |
GE15ES | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 | |
GE17ES | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 | |
GE20ES | 20 | 35 | 16 | 12 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 | |
GE25ES | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 | |
GE30ES | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 | |
GE35ES | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 | |
GE40ES | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 6 | 100 | 500 | 0.3 | |
GE45ES | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 | |
GE50ES | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 | |
GE60ES | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 | |
GE70ES | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 | |
GE80ES | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 | |
GE90ES | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 | |
GE100ES | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 | |
GE110ES | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 | |
GE120ES | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
