| Volume: | 10m3 | Open Height: | 4000mm |
|---|---|---|---|
| Open Width: | 5900mm | Open Weight: | 14300 Kg |
| Motor Power: | 55 Kw | Power Supply: | 380 V / 50 Hz, 440 V / 60 Hz |
| High Light: | scrap grab,electro hydraulic grabs |
||

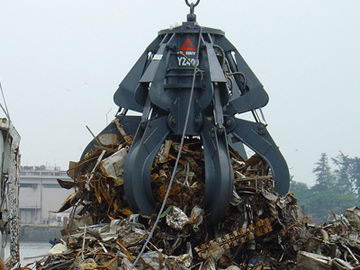

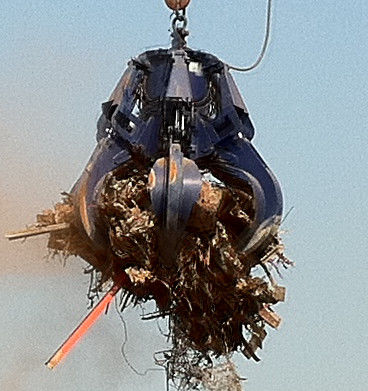

Hydraulic Orange Peel Grabs For Loading / Unloading Steel Scraps
Specifications:
|
Technical Parameter Table for Grab |
|||
|
Item |
Parameter |
Item |
Parameter |
|
Volume |
3.2 m3 |
Voltage |
380V, 50Hz |
|
Level of antisepticise |
F2 |
Level of Protection |
IP 55 |
|
Motor output power |
37 kw |
Motor input power |
45 kw |
|
Insulation class |
F |
Dead Weight |
2190 kg |
|
Open height |
3590 mm |
Close height |
3740 mm |
|
Open width |
4230 mm |
Close width |
2580 mm |
|
Close time |
16 S |
Open time |
9 S |
Applications:
It is widely used for the loading/unloading of cargos with irregular shapes such as steel scraps, garbage, stones, in particular the steel plant, garbage burning processing, mine, port and railway transfer, etc.
Description:
- The production method totally follows the SAC International Industrial Standard of USA. The performance and quality of this product entirely reach the top level of the world. The motor of grab is ABB brand, material of grab tooth is 42MnV7, it can guarantee the useful time for the grab.
- This hydraulic orange – peel grab with low-CG (center of gravity), the angle sensor installed inside the grab to test the tilt situation of grab and also can prevent the tipping. The voltage of the grab is 380V; there is one motor to drive the pump to control the grab closing. The control system has their independent control panel to control the grab system independently.
- The working humidity of this grab is 90% without condensation, the working temperature of this grab is -20-50℃, if the temperature is lower than 0℃ or more than 50℃, The hydraulic oil should be change to the special type.
Competitive Advantage:
- The advanced design makes sure the solid structure.
- Combined with hydraulic system with high reliability, its performance can be secure, stable, long-life and low maintenance
