Product Details:
Payment & Shipping Terms:
|
| Product Name: | 28T 6 - 15CBM Electro Hydraulic Clamshell Grab For Ship Crane | Application: | Dry Bulk Cargo Loading |
|---|---|---|---|
| Standard: | ISO9001 | Feature: | Motor Hydraulic Drive |
| Key Parts: | Import | Color: | Follow The Requirement Of Customer |
| Crane Lifting Capacity: | 28t | Piled Density: | 1.375-2.75t/m³ |
| Grab SWL: | 19t | Motor Output: | 45kw 380V-50Hz |
| Grab Dead Weight: | 9.0t | Max.working Pressure: | 230bar |
| Grab Volume: | 15CBM | Grab Open/close Time: | 13s/15s |
| High Light: | hydraulic grab,clamshell grab bucket |
||

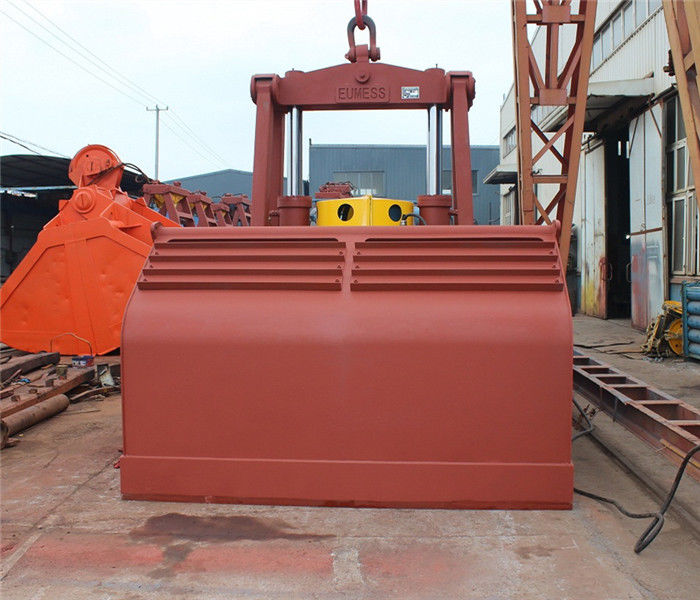

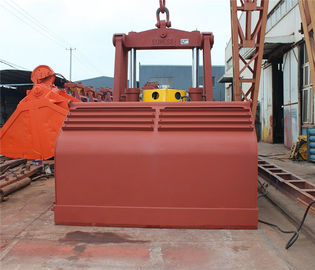

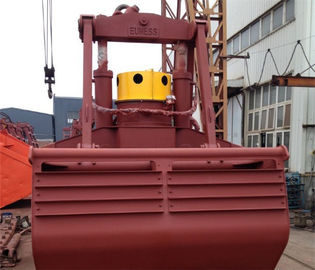

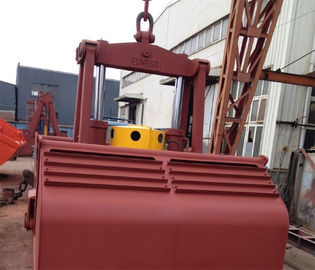

28T 6 - 15CBM Electro Hydraulic Clamshell Grab for Ship Crane
Description:
|
Crane Capacity (t) |
Volume (m³) |
Cargo Density(t/m³) |
Cargo Weight (t) |
Grab Weight (t) |
Grab Model |
Mark |
|
10 |
3-6 |
2.0-1.0 |
6 |
4 |
EH10-6-4 |
|
|
12 |
3-6 |
2.5-1.25 |
7.5 |
4.5 |
EH12-6-4.5 |
|
|
16 |
4-8 |
2.5-1.25 |
10 |
6 |
EH16-8-6 |
|
|
20 |
5-10 |
2.55-1.25 |
12.5 |
7.5 |
EH20-10-7.5 |
|
|
24 |
6-12 |
2.55-1.28 |
15.3 |
8.7 |
EH24-12-8.7 |
HOT |
|
25 |
6-12 |
2.67-1.33 |
16 |
9 |
EH25-12-9 |
HOT |
|
28 |
6-15 |
3.0-1.2 |
18 |
10 |
EH28-15-10 |
HOT |
|
36 |
8-20 |
2.88-1.15 |
23 |
13 |
EH36-20-13 |
HOT |
|
40 |
10-30 |
2.52-0.84 |
25.2 |
14.8 |
EH36-20-13 |
|
|
50 |
12-30 |
2.52-0.84 |
32 |
18 |
EH50-30-18.5 |
|
| Electric Hydraulic clamshell grab is in High Handling effect, especially for high viscosity materials such as nickel mine; |
| Electric Hydraulic clamshell grab is in High efficiency, equal work time can handle 20% material more than remote control grab |
| Electric Hydraulic clamshell grab is in High safety performance, falls on any point of the materials, won’t effect effects the equipment |
| The wire drum protects electric Hydraulic clamshell grab is in from side to side when working, especially when cleaning the vessel; |
Applications:
Bulk carriers:38,000 to 42,000 dwt, 50,000 to 54,000 dwt, port
Competitive Advantage:
|
High Handling effect |
|
High safety performance |
|
Enhanced ease and convenience of operation. |
|
Shockless,noiseless and smooth operation. |
|
Import key parts |
|
Stable power supply |
