Product Details:
Payment & Shipping Terms:
|
| Product Name: | 25m³ Remote Control Grab For Ship Deck Crane Loading Bulk Materials | Application: | On Deck Crane For Bulk Cargo Ship |
|---|---|---|---|
| Loading Material: | Coal, Sand, Grain, Or Iron Ore Cargoes | Volume(with Kick Plates): | 25m3 |
| Piled Density: | 1.29-2.58t/ M3 | Pulley Dia: | 720mm |
| Rope Dia: | 36mm | Material: | 16Mn |
| Color: | According To The Customer | ||
| High Light: | remote control grapple,remote control grabs |
||

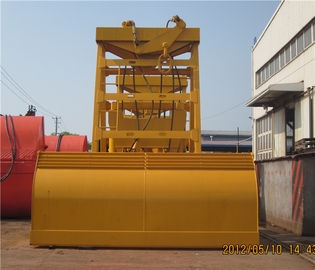

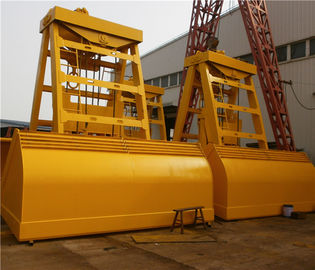

25m³ Remote Control Grab for Ship Deck Crane Loading Bulk Materials
Technical Parameters of Remote Control Grab for Bulk Cargo Ship
|
Crane Capacity |
Volume |
Cargo Density |
Cargo Weight |
Grab Weight |
Grab Model |
Mark |
|
10 |
4-6m³ |
1.25-0.83 |
5 |
5 |
RC10-6-5 |
|
|
12 |
4-6m³ |
1.63-1.08 |
6.5 |
5.5 |
RC12-6-5.5 |
|
|
16 |
5-8m³ |
1.9-1.19 |
9.5 |
6.5 |
RC16-8-6.5 |
|
|
20 |
5-8m³ |
2.5-1.56 |
12.5 |
7.5 |
RC20-8-7.5 |
|
|
20 |
6-10m³ |
2.0-1.2 |
12 |
8 |
RC20-10-8 |
HOT |
|
24 |
6-12m³ |
2.5-1.25 |
15 |
9 |
RC24-12-9 |
HOT |
|
25 |
6-10m³ |
2.67-1.6 |
16 |
9 |
RC25-10-9 |
HOT |
|
25 |
8-12m³ |
2.58-1.29 |
15.5 |
9.5 |
RC25-12-9.5 |
HOT |
|
25 |
6-15m³ |
2.5-1.0 |
15 |
10 |
RC25-15-10 |
|
|
28 |
6-15m³ |
2.83-1.13 |
17 |
11 |
RC28-15-11 |
|
|
36 |
8-20m³ |
2.81-1.13 |
22.5 |
13.5 |
RC36-20-13.5 |
|
|
36 |
10-25m³ |
2.2-0.88 |
22 |
14 |
RC36-25-14 |
|
|
40 |
10-30m³ |
2.35-0.78 |
23.5 |
16.5 |
RC40-30-16.5 |
|
|
50 |
12-30m³ |
2.63-1.05 |
31.5 |
18.5 |
RC50-30-18.5 |
|
Brief Introduction of Remote Control Grab for Bulk Cargo Ship
Wireless remote control grab is a dual scoop grab that applies radio control technique to single rope grab.
Compare with traditional single rope grab, it’s more reliable, easy to operate, and typically
operate in combination with single hook crane and ship deck crane.
Advantages of Remote Control Grab for Bulk Cargo Ship
Decreased cycle time thereby reducing operational cost.Enhanced ease and convenience of operation.
Controlled opening of the grab,enabling a single Grab to discharge cargo into any kind of Hopper
irrespective of the size No cables between transmitter and receiver, thereby no maintenance hassles due to cable faults.Can be operated from a distance of 100 meters.
Shockless,noiseless and smooth operation.BV,CCS,LR certificate supply
Import key parts Independent power supply
General Drawing of Remote Control Grab for Bulk Cargo Ship
Our Services of Remote Control Grab for Bulk Cargo Ship
1. The highest standard service after sales is provided in 24 hours and spare parts are deliveried in 3 days to secure productivity in your operations.
2. Engineers are available service machinery oversea.
FAQ
If any of the following information can be provided in your inquiry, it is very preciated :
1.The kind of grab you need ( Remote Control Grabs, Electric Hydraulic Grabs,clamshell
grab,orange peel grab, single rope grab,two rope grab or four rope grab)
2. Your crane lifting capacity (SWL)?
3. The material the grab unload (name or density)?
4. The volume of the grab and the material the grab unload?
We can provide exact drawing for you with above information you give to us.
