Product Name: | 1.6cbm Electro Hydraulic Orange Peel Grab For Steel Scrap Loading | Application: | Steel Sraps Loading |
---|---|---|---|
Standard: | ISO9001 | Feature: | Motor Hydraulic Drive |
Key Parts: | Import | Color: | Follow The Requirement Of Customer |
Crane Lifting Capacity: | 9.1t | Piled Density: | 1.8-3.0t/m³ |
Grab SWL: | 4.83t | Grab Dead Weight: | 4.27t |
Max.working Pressure: | 180bar | Grab Volume: | 1.6m³ |
Grab Close Time: | 12s | ||
High Light: | orange peel grab,orange peel grab bucket |

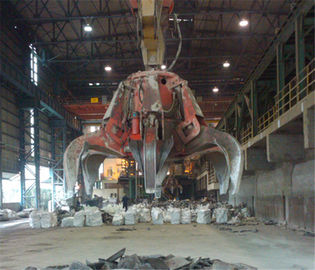

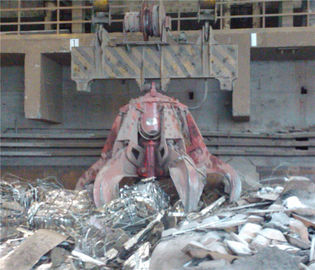

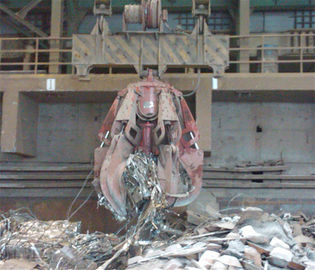

1.6cbm Electro Hydraulic Orange Peel Grab for Steel Scrap Loading
Description
1. Electro Hydraulic grab is in High Handling effect, especially for high viscosity materials such as nickel mine;
2. Electro Hydraulic grab is in High efficiency, equal work time can handle 20% material more than remote control grab;
3. Electro Hydraulic grab is in High safety performance, falls on any point of the materials, won’t effect effects the equipment;
4.The wire drum protects electric Hydraulic grab is in from side to side when working, especially when cleaning the vessel.
Applications:
Bulk carriers:38,000 to 42,000 dwt, 50,000 to 54,000 dwt, port,steel plant
Competitive Advantage:
High Handling effect;High safety performance;
Enhanced ease and convenience of operation.
Shockless,noiseless and smooth operation;
BV,CCS certificate supply;Import key parts;Stable power supply.
