Color: | Blue | Capacity: | 2 - 10 Ton |
---|---|---|---|
Rope Reeving: | 2/1 , 4/1 , 4/2 | Lifting Height: | 3 M - 40 M |
Duty Group: | ISO M5 , ISO M6 | Overheating Protection: | Included |
High Light: | high speed hoist,10 ton electric hoist |

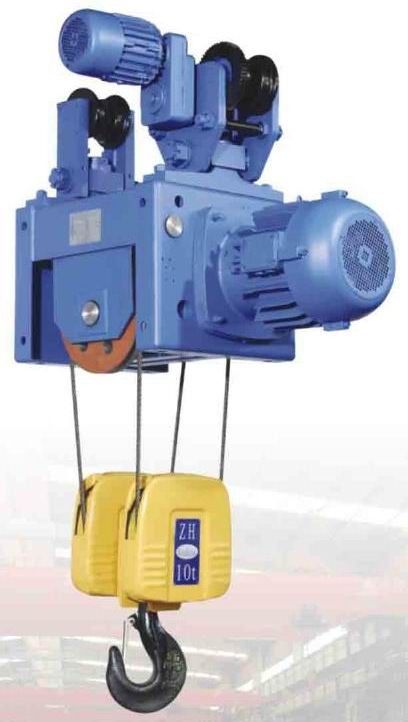

Metallurgy Industry Light Duty Electric Crane Hoist 10 Ton 220 - 600V 50 / 60Hz
Detailed Product Description
ZH – Type Metallurgy Hoist
It is a newly developed product by applying and combining the technologies from Germany. Its electromotor, planetary gearbox and electric control box is in beeline collocation. This hoist is mainly used in metallurgy industry. It’s duty group is ISO M6, the electromotor insulation class is H. This hoist includes hammer limiter, which can limit the lifting height so as to ensure the reliability and safe usage of the hoist. The metallurgy hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Application
ZH – Type Electric Wire Rope Metallurgy Hoist is mainly used in metallurgy industry with high temperature working ambient. And the Metallurgy hoist can work durably and efficiently in high temperature environments.
Competitive Advantages
- Low noise, safe and reliable traveling.
- Single speed, double speed or variable speed if client request.
- Corrosion resistance and fatigue resistance
- Smooth starting and stopping.
- Convenient maintenance.
- Overload protection device.
- Overheating protection
- Superior performance in high temperature ambient
Higher Security and Reliability
1. Brake and overload protection ensure the safety under any circumstance, no slip under load
2. Euro design, compact structure.
3. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
4. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.
6. Low-voltage protection ensures the safe and reliable operation.
7.The weight switch is as the second up limit to ensure safety.
Specifications
Capacity |
2 Ton – 10Ton |
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M5/M6 |
|
Power Supply |
220-600V, 50-60 Hz |
|
Rope Reeving |
2/1, 4/1, 4/2, 8/2, etc. |
|
Pendant control or remote control push button |
Included |
Technical Data Of Metallurgy Hoist
Type |
Capacity |
Lifting speed |
Rope |
Working |
Hmin |
L,L0 |
A1 |
B1 |
Weight |
|||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
|||||||||
ZHz320X |
2.0 |
8, 8/2.0 |
2/1 |
M6 |
1250 |
— |
1165 |
1275 |
1385 |
1495 |
1605 |
1825 |
2045 |
627 |
411 |
450 |
2.5 |
6.3, 6.3/1.6 |
2/1 |
M5 |
|||||||||||||
2.0 |
8, 8/2.0 |
4/2 |
M6 |
1050 |
1385 |
1495 |
1605 |
1825 |
2045 |
2170 |
2550 |
— |
— |
411 |
530 |
|
2.5 |
6.3, 6.3/1.6 |
4/2 |
M5 |
|||||||||||||
3.2 |
4, 4/1.0 |
4/1 |
M6 |
1250 |
1275 |
1385 |
1605 |
1825 |
2045 |
— |
— |
— |
754 |
570 |
590 |
|
4 |
4, 4/1.0 |
4/1 |
M6 |
|||||||||||||
ZHz500X |
3.2 |
8, 8/2.0 |
2/1 |
M6 |
1450 |
— |
1230 |
1335 |
1445 |
1555 |
1660 |
1875 |
2090 |
646 |
570 |
620 |
4.0 |
6.3, 6.3/1.6 |
2/1 |
M5 |
|||||||||||||
3.2 |
8, 8/2.0 |
4/2 |
M6 |
1200 |
1445 |
1555 |
1660 |
1875 |
2090 |
2205 |
2530 |
— |
— |
570 |
750 |
|
4.0 |
6.3, 6.3/1.6 |
4/2 |
M5 |
|||||||||||||
5.0 |
4, 4/1.0 |
4/1 |
M6 |
1450 |
1335 |
1445 |
1660 |
1875 |
2090 |
— |
— |
— |
816 |
641 |
900 |
|
6.3 |
4, 4/1.0 |
4/1 |
M6 |
|||||||||||||
ZHz1000X |
5.0, 6.3 |
6.3, 8, 10 |
2/1 |
M6 |
1750 |
— |
1440 |
1495 |
1600 |
1705 |
1805 |
2015 |
2225 |
751 |
641 |
1050 |
8 |
6.3, 8 |
2/1 |
M5 |
|||||||||||||
5, 6.3 |
6.3, 8, 10 |
4/2 |
M6 |
1480 |
1600 |
1705 |
1805 |
2015 |
2225 |
2330 |
2635 |
— |
— |
641 |
1300 |
|
8 |
6.3, 8 |
4/2 |
M5 |
|||||||||||||
8 |
3.2, 4, 5 |
4/1 |
M6 |
1750 |
1495 |
1600 |
1805 |
2015 |
2225 |
— |
— |
— |
835 |
606 |
1600 |
