Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm

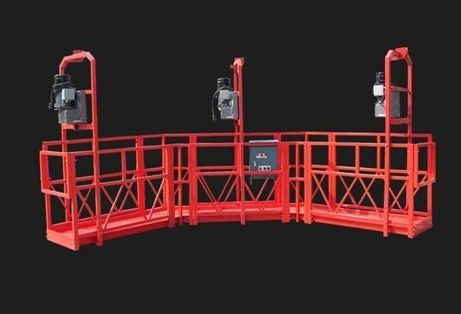

Large Image :  Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm

Product Details:
Place of Origin: CHINA
Brand Name: KETONG
Certification: ISO,GOST-R,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: EXPORT PACKING
Delivery Time: 10-30 DAYS
Payment Terms: T/T OR LC
Supply Ability: 300SETS
Detailed Product Description
High Light:

scaffold hoists


gantry hoists

Adjustable Suspended Lifting Platform / Temporary Work Platforms



KETONG Suspended working platform more than 8 years , more than 90% products export to all over world for 7 years , we already have agents in following countries : Dubai UAE ,  Russia , Vietnam, India . some other place we can discussing now . We have a complete after-sales service system to ensure the machines keep working well , you can find easy of our  working team even just 1 set platform in that market . so please set your heart at rest to do business with us .

Data of working platform
Model ZLP100 ZLP250 ZLP300 ZLP500 ZLP630 ZLP800 ZLP1000
Material Aluminum alloy, Steel painted, Steel galvanized
Load capacity 100kgs 250kgs 300kgs 500kgs 630kgs 800kgs 1000kgs
Safety lock type LST30 LST30 LST30 LST30 LST30 LST30 LST30
Hoist model LTD6.3 LTD6.3 LTD6.3 LTD6.3 LTD6.3 LTD8.0 LTD10.0
Volume 1.5 2.3 2.4 2.8 2.9 3.0 3.2
Max Speed (m/min) 8.3 8.3 8.3 8.3 8.3 9.6 9.6
20GP container qty 20 16 12 10 10 9 8
Counter weight qty 25x16pcs 25x16pcs 25x24pcs 25x32pcs 25x36pcs 25x40pcs 25x44pcs
Diameter of steel rope(mm) 8.3 8.3 8.3 8.3 8.3 8.6 9.1
Weight (kg) (Aluninum alloy) 1140 1170 1400 1650 1750 1930 2250

Weight (kg) (Steel painted )

1170 1220 1500 1740 1890 2100 2560/2670
Weight(kg) (Steel with glavanized) 1170 1220 1500 1740 1890 2100 2560/2670
Length of Platform 1m 2m 3m 5m 6m 7.5m 7.5/10m
Steel wire rope 4x25mm 4x25mm 4x25mm 4x25mm 4x25mm 4x31mm 6x19mm

  Ketong Suspended working platform has many models for your choosing or customized  for different building request , we have clearly video and instruction book to help you install and use smoothly , We also have a huge team of after-sales service to keep our machines working well always , we are developing agents all over world to protect our brand reputation and local sellers price , we have very good rules to you if you would like to be our agent , such as we can come to your local fair  , have meeting with your buyers as a professional factory , our engineer can come to you to teach your workers to know our platform deeply  , strict contract to protect agents in that area ...  Welcome to discuss .
The main Part:
1. Suspension Mechanism and Counterweight
    The Height of the platform can be adjusted within 1150-1800mm with arm which can  be stretched out and drawn back , it can be widely used parapet and complicated building in different height , and we can also supply customized platform to meet different requirement from the customers
2. Working Platform
   we have different capacity platform for different request , the Main capacity is : 250kgs , 500kgs, 630kgs, 800kgs
3. Hoist Motor
   Now we have three different Hoist Motor for your choosing ,  LTD2.5, LTD6.3,LTD 8.0 ,


Hoist Motor

Power and Voltage

1.8KW*2, 380V-415V, 50HZ,3phase

Drive disk Assembly material

38CrMoA1A(Best materail)


Imported from Japan

   4.Electrical Control box
     Installed with international and national famous brands electrical components, our electial control system consists of many protection devices, Such  safety devices as electical leakage protection device ,automatic limited swith , creepage and overheat protection ,emergency brake ,current coverload proof,which make operate more easier ,safter and reliable .


Control Box


Schneider Brand

 5. Safety Lock
    When the steel wire rope is broken ,blocked ,slip out of he hoist or the working platform inclines,the safey lock will lock the rope within 100mm, this safety device is high advanced in China now .


Safety lock
(anti-tilting type)

Permission force of impact


Locking Cable Angle


Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 0Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 1
Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 2Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 3Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 4Adjustable suspended platform wire rope 8.6mm ,8.3mm,9.1mm 5
