Portable Under - Slung Electric Crane Foot Mounted Hoist With Remote Control
Detailed Product Description

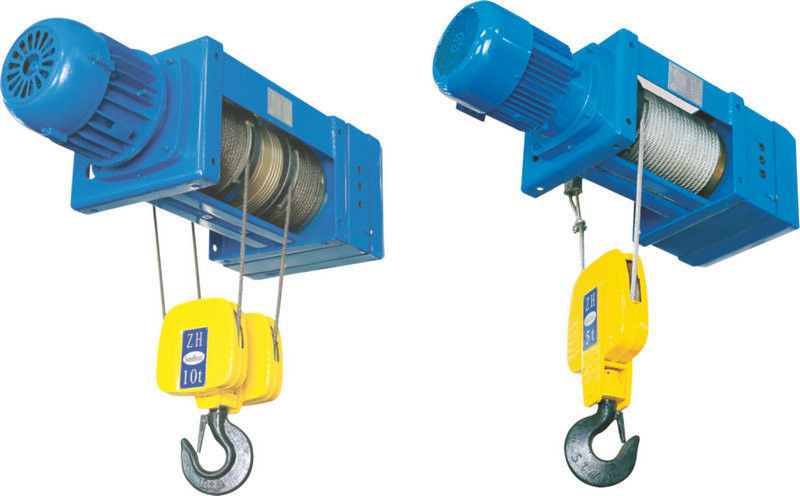

ZH - Type Foot - Mounted Electric Wire Rope Hoist
It is designed and developed by the technologies from Germany. It has a rectangular shape with the electromotor, planetary reducer and electric control box in a beeline collocation. Its reducer is inside the hoisting drum, which has no internal stress and no need of heat treatment. The hoisting hook is of standard P - Class. The hoist has electric control system to ensure the safety and durability. This hoist includes overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Competitive Advantages
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
- Corrosion resistance and fatigue resistance.
Application
ZH – Type Foot – Mounted Hoist is widely used in light duty industry, heavy duty industry, ship building, modern material handling industry and metallurgy industry, etc.
Higher Security and Reliability
1. Brake and overload protection ensure the safety under any circumstance.
2. Efficient high lifting speed, smooth low lifting speed, precise positioning.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low-voltage protection ensures the safe and reliable operation.
5. The optimal corrosion resistance under harsh environment.
6. The weight switch is as the second up limit to ensure safety.
Specifications
Capacity |
2 Ton – 25Ton |
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-50 degrees |
|
Power Supply |
220-600V, 50-60 Hz |
|
Rope Reeving |
2/1, 4/1, 4/2, etc. |
|
Pendant control or remote control push button |
Included |
Technical Data Of Foot - Mounted Electric Wire Rope Hoist
Type |
Capacity |
Lifting speed |
Rope |
Working |
Hmin |
L,L0,A2 |
A1 |
Weight |
A |
H |
D |
|||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
|||||||||||
ZH320G |
3.2 |
8, 8/2.0 |
2/1 |
M4 |
570 |
— |
1165 |
1275 |
1385 |
1495 |
1605 |
1825 |
2045 |
152 |
270 |
425 |
345 |
φ22 |
4 |
6.3, 6.3/1.6 |
2/1 |
M3 |
|||||||||||||||
3.2 |
8, 8/2.0 |
4/2 |
M4 |
460 |
1385 |
1495 |
1605 |
1825 |
2045 |
2170 |
2550 |
— |
— |
350 |
||||
4 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||||
5 |
4, 4/1.0 |
4/1 |
M5 |
500 |
1275 |
1385 |
1605 |
1825 |
2045 |
— |
— |
— |
196 |
430 |
||||
6.3 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||||
8 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||||
ZH500G |
5 |
8, 8/2.0 |
2/1 |
M4 |
660 |
— |
1230 |
1335 |
1445 |
1555 |
1660 |
1875 |
2090 |
175 |
390 |
500 |
415 |
φ24 |
6.3 |
6.3, 6.3/1.6 |
2/1 |
M3 |
|||||||||||||||
5 |
8, 8/2.0 |
4/2 |
M4 |
500 |
1445 |
1555 |
1660 |
1875 |
2090 |
2205 |
2530 |
— |
— |
560 |
||||
6.3 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||||
8 |
4, 4/1.0 |
4/1 |
M5 |
650 |
1335 |
1445 |
1660 |
1875 |
2090 |
— |
— |
— |
241 |
720 |
||||
10 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||||
12.5 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||||
ZH1000G |
10 |
6.3, 8, 10, 6.3/1.6 |
2/1 |
M4 |
820 |
— |
1440 |
1495 |
1600 |
1705 |
1805 |
2015 |
2225 |
195 |
600 |
660 |
550 |
φ30 |
12.5 |
6.3, 8 |
2/1 |
M3 |
|||||||||||||||
10 |
6.3, 8, 10, 6.3/1.6 |
4/2 |
M4 |
610 |
1600 |
1705 |
1805 |
2015 |
2225 |
2330 |
2635 |
— |
— |
750 |
||||
12.5 |
6.3, 8 |
4/2 |
M3 |
|||||||||||||||
16 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M5 |
870 |
1495 |
1600 |
1805 |
2015 |
2225 |
— |
— |
— |
288 |
1050 |
||||
20 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M4 |
|||||||||||||||
25 |
3.2, 4 |
4/1 |
M3 |
|||||||||||||||
ZH1600G |
12.5 |
6.3, 8, 10 |
4/2 |
M5 |
800 |
— |
1380 |
1570 |
1760 |
1950 |
2140 |
2520 |
2880 |
|
1500 |
550 |
550 |
φ33 |
16 |
6.3, 8, 10 |
4/2 |
M4 |
|||||||||||||||
ZH2000G |
20 |
5, 6.3, 8 |
4/2 |
M5 |
900 |
— |
1490 |
1670 |
1850 |
2030 |
2210 |
2570 |
2930 |
|
2200 |
680 |
680 |
φ39 |
25 |
5, 6.3, 8 |
4/2 |
M4 |
