Product Details:
Payment & Shipping Terms:
|
| Color: | Bule | Material: | Q235B |
|---|---|---|---|
| Capacity: | 3.2 Ton - 20 Ton | Lifting Height: | 4 M - 30 M |
| Duty Group: | ISO M3 - ISO M5 | Power Supply: | 220 - 600V, 50 - 60Hz |
| High Light: | wire rope hoist,industrial hoist |
||

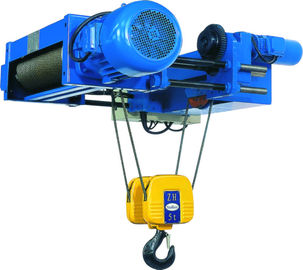

6 ton, 8 ton, 10 ton Low-Headroom / Low Clearance Electric Wire Rope Monorail Hoist For Storage / Workshop / Warehouse
Applications:
EH-Type low-headroom / low clearance electric wire rope hoist widely used in machinery fabrication,
metallurgical plant auxiliary workshop, storage, stock ground, warehouse, and power station.

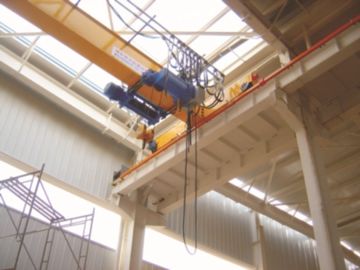

It is installed in box girder of overhead crane directly, instead of I beam
It is the best choice of short warehouse.
Description:
EH-Type low-headroom / low clearance electric wire rope hoist is developed by combining and applying technologies from Germany. Its reducer is laid inside the hoisting drum, and the modular design can realize the seamless connection with frequency inverter system, automatic testing system and automatic weighing system.
- Rope reeving: 2/1, 4/1, 4/2
- Lifting speed is Single speed, double speed, and variable frequency speed for choice
- The standard lifting height is 4, 6, 9, 12, 15, 18, 24, 30m. Any special requirement for the lifting height is negotiable.
- Pendant control or remote control push button
|
Capacity |
3.2t-20t |
|
|
Lifting Height |
depends on your requirement |
|
|
Speed |
Lifting |
Single speed |
|
Cross Travelling |
Single speed |
|
|
Working Group |
ISO:M3/M4/M5/M6 |
|
|
Working Environment |
-25-45 degrees |
|
|
Power Supply |
220-600V, 50-60 Hz |
|
Specifications:
|
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
Hmin E |
Dimensions L,L0 |
A1 L1 |
B1 B2 |
H H1 |
Dead Weight H9 Kg |
|||||||
|
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
||||||||
|
3.2 |
8,8/2.0 |
M4 |
800 — |
— |
1165 365 |
1275 475 |
1385 585 |
1495 695 |
1605 805 |
1825 1025 |
2045 1245 |
627 514 |
394 523 |
387 157 |
520 |
|
5 |
4,4/1.0 |
M5 |
710 — |
1275 475 |
1385 585 |
1605 805 |
1825 1025 |
2045 1245 |
— |
— |
— |
754 514 |
486 537 |
401 178 |
720 |
|
6.3 |
4,4/1.0 |
M4 |
|||||||||||||
|
5 |
8,8/2.0 |
M4 |
960 — |
— |
1230 400 |
1335 505 |
1445 615 |
1555 725 |
1660 830 |
1875 1045 |
2090 1260 |
646 519 |
476 607 |
466 178 |
850 |
|
8 |
4,4/1.0 |
M5 |
890 — |
1335 505 |
1445 615 |
1660 830 |
1875 1045 |
2090 1260 |
— |
— |
— |
816 519 |
578 626 |
500 243 |
1100 |
|
10 |
4,4/1.0 |
M4 |
|||||||||||||
|
10 |
6.3,8,10,6.3/1.6 |
M4 |
1150 — |
— |
1440 455 |
1495 510 |
1600 615 |
1705 720 |
1805 820 |
2015 1030 |
2225 1240 |
751 620 |
628 784 |
618 243 |
1400 |
|
16 |
3.2,4,5,3.2/0.8 |
M5 |
1090 — |
1495 510 |
1600 615 |
1805 820 |
2015 1030 |
2225 1240 |
— |
— |
— |
835 620 |
738 784 |
678 243 |
1980 |
|
20 |
3.2,4,5,3.2/0.8 |
M4 |
|||||||||||||
Competitive Advantage:
- The axial dimension of hoist is compact, it is easy to close the wall and lift higher in a certain height.
The size of rail bottom base to hook is the smallest compared with CD hoist; it makes the possible to lower the height of construction.
- Light self-weight, light wheel pressure. It reduces the pressure of girder, raises the safety coefficient of girder.
- Double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
Safety feature:
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
