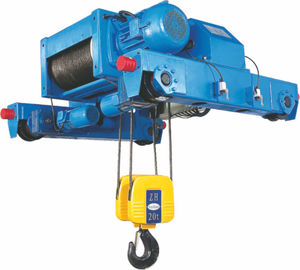

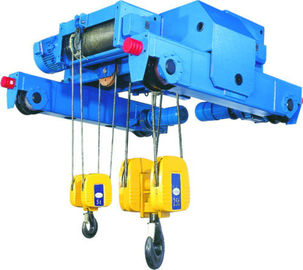

40 ton, 50 ton Double Girder Electric Wire Rope Hoist With Trolley For Storage / Workshop / Warehouse / Power Station
Applications:
EH-Type Double Girder Electric Wire Rope Hoist Widely used in machinery fabrication,
metallurgical plant auxiliary workshop, storage, stock ground, warehouse, and power station.
It is also can be used as regular double-girder overhead crane in textile industry or food industry.
But it is forbidden to use in inflammable, explosive or erosion environment.
Description:
EH-Type Double Girder Electric Wire Rope Hoist is developed by combining and applying technologies
from Germany.
Its reducer is laid inside the hoisting drum,
and the modular design can realize the seamless connection with frequency inverter system,
automatic testing system and automatic weighing system.
- Rope reeving: 2/1, 4/1, 4/2, 6/1, 6/2, 8/2
- Lifting speed is Single speed, double speed, and variable frequency speed for choice
- The standard lifting height is 4, 6, 9, 12, 15, 18, 24m. The max lifting height can reach to 120m.
- The normal traveling speed is 20m/min, or 12.5,16,25,32,20/6.5 and 20/5 m/min for choice.
- The normal traveling gauge of the double girder hoist is 1200, 1400, 1600, 1800, 2000, 2500 and 3000mm.
Traveling speed of this hoist is 20m/min, or 32,40,20/6.5,and 20/5 m/min for choice.
- Pendant control or remote control push button
|
Capacity |
3.2t-50t |
|
|
Lifting Height |
depends on your requirement |
|
|
Speed |
Lifting |
Single speed |
|
Cross Travelling |
Single speed |
|
|
Working Group |
ISO:M3/M4/M5/M6 |
|
|
Working Environment |
-25-45 degrees |
|
|
Power Supply |
220-600V, 50-60 Hz |
|
Specifications:
|
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
Hmin |
Dimensions W,L0 |
B B0 |
H H1 |
B1 |
Dead Weight H9 Kg |
Wheel Dia. & Width |
||||||
|
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
|||||||||
|
3.2 |
8,8/2.0 |
M4 |
400 |
1200 585 |
1200 695 |
1400 805 |
1600 1025 |
1800 1245 |
2000 1370 |
2200 1750 |
1600 1100 |
580 146 |
— — |
650 |
φ160×55 |
|
5 |
4,4/1.0 |
M5 |
450 |
1200 475 |
1200 585 |
1800 805 |
2200 1025 |
2500 1245 |
— |
— |
1600 1100 |
580 146 |
— — |
730 |
φ160×55 |
|
6.3 |
4,4/1.0 |
M4 |
|||||||||||||
|
8 |
2.5,2.5/0.6 |
M5 |
700 |
1800 585 |
2000 805 |
2500 1135 |
— |
— |
— |
— |
1720 1200 |
620 180 |
— — |
1250 |
φ200×60 |
|
10 |
2.5,2.5/0.6 |
M4 |
|||||||||||||
|
5 |
8,8/2.0 |
M4 |
450 |
1200 615 |
1200 725 |
1400 830 |
1600 1045 |
1800 1260 |
2000 1375 |
2200 1700 |
1600 1100 |
645 146 |
— — |
1000 |
φ160×55 |
|
8/3.2 |
4,4/1.0 |
M5 |
600 |
1400 505 |
1400 615 |
1800 830 |
2200 1045 |
2500 1260 |
— |
— |
1720 1200 |
710 375 180 |
— — |
1400 |
φ200×60 |
|
10/3.2 |
4,4/1.0 |
M4 |
|||||||||||||
|
12.5/3.2 |
2.5,2.5/0.6 |
M5 |
850 |
1800 615 |
2000 830 |
2500 1150 |
— |
— |
— |
— |
2020 1400 |
755 222 |
400 |
2300 |
φ250×70 |
|
16/3.2 |
2.5,2.5/0.6 |
M4 |
|||||||||||||
|
10/3.2 |
6.3,8,10,6.3/1.6 |
M4 |
600 |
1400 615 |
1400 720 |
1400 820 |
1600 1030 |
1800 1240 |
2000 1345 |
2200 1650 |
1720 1200 |
810 180 |
500 |
1500 |
φ200×60 |
|
16/5 |
3.2,4,5,3.2/0.8 |
M5 |
700 |
1600 510 |
1600 615 |
1800 820 |
2200 1030 |
2500 1240 |
— |
— |
2020 1400 |
880 222 |
560 |
2600 |
φ250×70 |
|
20/5 |
3.2,4,5,3.2/0.8 |
M4 |
|||||||||||||
|
25/5 |
2,2.5,3.2,2/0.5 |
M5 |
1000 |
1800 615 |
2000 820 |
2500 1135 |
— |
— |
— |
— |
2380 1800 |
955 275 |
600 |
3200 |
φ315×80 |
|
32/5 |
2,2.5,3.2,2/0.5 |
M4 |
|||||||||||||
|
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
Hmin |
Dimensions W,L0 |
B B0 |
H H1 |
Dead Weight H9 Kg |
Wheel Dia. & Width |
||||||
|
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
||||||||
|
12.5 12.5/3.2 |
6.3,8,10 |
M5 |
850 |
— |
1800 700 |
1800 890 |
1800 1080 |
2000 1270 |
2200 1460 |
2500 1840 |
2020 1400 |
905 222 |
3000 |
φ250×70
|
|
16 16/3.2 |
6.3,8,10 |
M4 |
||||||||||||
|
20 20/5 |
4,5,6.3 |
M5 |
1400 |
200 700 |
2000 890 |
2000 1210 |
2200 1460 |
2500 1615 |
2800 1970 |
3200 2600 |
2380 1600 |
1010 275 |
3600 |
φ315×80 |
|
25 25/5 |
4,5,6.3 |
M4 |
||||||||||||
|
25 25/5 |
3.2,4,5 |
M5 |
1300 |
2000 890 |
2000 1080 |
2200 1460 |
2500 1840 |
2800 2200 |
3200 2600 |
4000 3360 |
2380 1600 |
1010 275 |
4000 |
φ315×80 |
|
32 32/5 |
3.2,4,5 |
M4 |
||||||||||||
|
20 20/5 |
5,6.3,8 |
M5 |
950 |
— |
1800 740 |
1800 920 |
1800 1100 |
2000 1280 |
2200 1460 |
2500 1820 |
2380 1600 |
1140 275 |
4000 |
φ315×80 |
|
25 25/5 |
5,6.3,8 |
M4 |
||||||||||||
|
32 32/5 |
3.2,4,5 |
M5 |
1500 |
2000 740 |
2000 920 |
2000 1220 |
2200 1460 |
2500 1700 |
2800 1940 |
3200 2540 |
2675 1700 |
1225 345 |
5000 |
φ400×100 |
|
40 40/10 |
3.2,4,5 |
M4 |
||||||||||||
|
40 40/10 |
2.5,3.2,4 |
M5 |
1400 |
2000 920 |
2000 1100 |
2200 1460 |
2500 1820 |
2800 2180 |
3200 2540 |
4000 3260 |
2675 1700 |
1225 345 |
5500 |
φ400×100 |
|
50 50/10 |
2.5,3.2,4 |
M4 |
||||||||||||
Competitive Advantage:
- Reasonable structure
- Double speed or variable speed if requested.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
Safety feature:
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
