6 ton, 8 ton Under-Slung Electric Wire Rope Monorail Hoist For Storage / Warehouse/ Workshop
Description:
EH-Type Under-Slung Electric Wire Rope Hoist is developed by combining and applying technologies from Germany. Its reducer is laid inside the hoisting drum, and the modular design can realize the seamless
connection with frequency inverter system, automatic testing system and automatic weighing system.
- Rope reeving: 2/1, 4/1, 6/1, 4/2, 6/2, 8/2
- Lifting speed is Single speed, double speed, and variable frequency speed for choice
- The standard lifting height is 4, 6, 9, 12, 15, 18, 24, 30m. The max lifting height can reach 120m. Any special requirement for the lifting height is negotiable.
- Pendant control or remote control push button
Capacity |
3.2t-20t |
|
Lifting Height |
depends on your requirement |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-45 degrees |
|
Power Supply |
220-600V, 50-60 Hz |
Applications:
EH-Type Under-Slung Electric Wire Rope Hoist Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, warehouse, and power station.
It not only can be installed at the single girder overhead crane, but also can be installed at any straight or curving steel railway. (The wheel type of this hoist is changeable, based on the client’s request.)

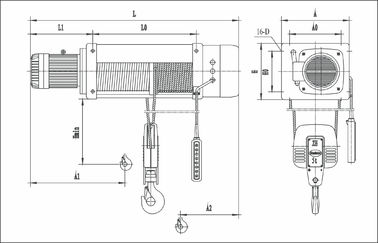

Specifications:
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
Hmin E |
Dimensions L,L0 |
A1 L1 |
B1 B2 |
H H1 |
Dead Weight H9 Kg |
|||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
||||||||
3.2 |
8,8/2.0 |
M4 |
1110 |
— |
1165 |
1275 |
1385 |
1495 |
1605 |
1825 |
2045 |
627 |
411 |
695 |
420 |
5 |
4,4/1.0 |
M5 |
1070 — |
1275 475 |
1385 585 |
1605 805 |
1825 1025 |
2045 1245 |
— |
— |
— |
754 514 |
570 491 |
746 178 |
540 |
6.3 |
4,4/1.0 |
M4 |
|||||||||||||
5 |
8,8/2.0 |
M4 |
1300 |
— |
1230 |
1335 |
1445 |
1555 |
1660 |
1875 |
2090 |
646 |
570 |
816 |
560 |
8 |
4,4/1.0 |
M5 |
1330 — |
1335 505 |
1445 615 |
1660 830 |
1875 1045 |
2090 1260 |
— |
— |
— |
816 519 |
641 491 |
928 243 |
830 |
10 |
4,4/1.0 |
M4 |
|||||||||||||
10 |
6.3,8,10,6.3/1.6 |
M4 |
1640 |
— |
1440 |
1495 |
1600 |
1705 |
1805 |
2015 |
2225 |
751 |
641 |
1063 |
950 |
16 |
3.2,4,5,3.2/0.8 |
M5 |
1630 — |
1495 510 |
1600 615 |
1805 820 |
2015 1030 |
2225 1240 |
— |
— |
— |
835 620 |
606 466 |
1003 243 |
1500 |
20 |
3.2,4,5,3.2/0.8 |
M4 |
|||||||||||||
20 |
3.2,4,5,3.2/0.8 |
M4 |
— |
820 |
1030 |
1345 |
1650 |
— |
— |
— |
— |
655 |
486 |
215 |
1800 |
Competitive Advantage:
- The axial dimension of hoist is compact, it is easy to close the wall and lift higher in a certain height. The size of rail bottom base to hook is the smallest compared with CD hoist; it makes the possible to lower the height of construction.
- Light self-weight, light wheel pressure. It reduces the pressure of girder, raises the safety coefficient of girder.
- Double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
Safety feature:
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
