Product Details:
Payment & Shipping Terms:
|
Color: | Blue | Material: | Q235B |
---|---|---|---|
Capacity: | 2 Ton - 25 Ton | Lifting Height: | 4 M - 30 M |
Duty Group: | ISO M3 - ISO M5 | Power Supply: | 220 - 600V, 50 - 60Hz |
High Light: | wire rope hoist,industrial hoist |
Applications:
EH-Type foot-mounted electric wire rope hoist widely used in plants, mining, railway, port, warehouse and so on
EH-Type foot-mounted hoist may be hung on overhead, I-shaped steel rail or any other where.
Description:

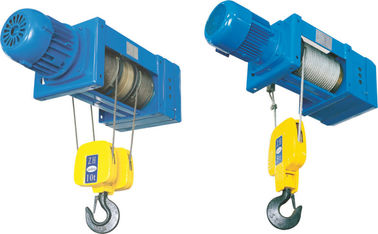

EH-Type foot-mounted electric wire rope Hoist is developed by combining and applying technologies from
Germany.

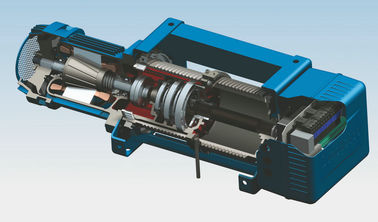

Its reducer is laid inside the hoisting drum, and the modular design can realize the seamless connection
with frequency inverter system, automatic testing system and automatic weighing system.
- Rope reeving: 2/1, 4/1, 4/2
- Lifting speed is Single speed, double speed, and variable frequency speed for choice
- The standard lifting height is 4, 6, 9, 12, 15, 18, 24, 30m. Any special requirement for the lifting height is
negotiable..
- Pendant control or remote control push button
Capacity |
2t-25t |
|
Lifting Height |
depends on your requirement |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-45 degrees |
|
Power Supply |
220-600V, 50-60 Hz |

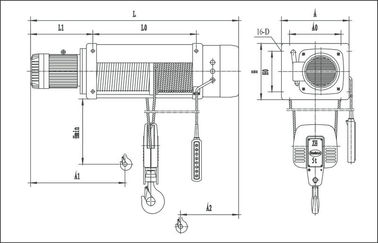

Specifications:
Capacity (ton) |
Lifting Speed (m/min) |
Duty |
Hmin E |
Dimensions L,L0 |
A1 L1 |
Dead Weight H9 Kg |
A A0 |
H H0 |
|||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
H30 |
||||||||
3.2 |
8,8/2.0 |
M4 |
570 — |
— |
1165 365 |
520 |
1385 585 |
1495 695 |
1605 805 |
1825 1025 |
2045 1245 |
627 514 |
270 |
425 320 |
345 240 |
5 |
4,4/1.0 |
M5 |
500 — |
1275 475 |
1385 585 |
720 |
1825 1025 |
2045 1245 |
— |
— |
— |
627 514 |
430 |
||
6.3 |
4,4/1.0 |
M4 |
|||||||||||||
5 |
8,8/2.0 |
M4 |
660 — |
— |
1230 400 |
850 |
1445 615 |
1555 725 |
1660 830 |
1875 1045 |
2090 1260 |
646 519 |
390 |
500 380 |
415 300 |
8 |
4,4/1.0 |
M5 |
650 — |
1335 505 |
1445 615 |
1100 |
1875 1045 |
2090 1260 |
— |
— |
— |
646 519 |
720 |
||
10 |
4,4/1.0 |
M4 |
|||||||||||||
10 |
6.3,8,10,6.3/1.6 |
M4 |
820 — |
— |
1440 455 |
1400 |
1600 615 |
1705 720 |
1805 820 |
2015 1030 |
2225 1240 |
751 620 |
600 |
660 500 |
550 400 |
16 |
3.2,4,5,3.2/0.8 |
M5 |
870 — |
1495 510 |
1600 615 |
1980 |
2015 1030 |
2225 1240 |
— |
— |
— |
751 620 |
1050 |
||
20 |
3.2,4,5,3.2/0.8 |
M4 |
|||||||||||||
12.5 |
6.3,8,10 |
M5 |
800 — |
— |
1380 700 |
1570 890 |
1760 1080 |
1950 1270 |
2140 1460 |
2520 1840 |
2880 2200 |
|
1500 |
550 400 |
550 400 |
16 |
6.3,8,10 |
M4 |
|||||||||||||
20 |
5,6.3,8 |
M5 |
900 — |
— |
1490 740 |
1670 920 |
1850 1100 |
2030 1280 |
2210 1460 |
2570 1820 |
2930 2180 |
|
2200 |
680 500 |
680 500 |
25 |
5,6.3,8 |
M4 |
Competitive Advantage:
- Reasonable structure
- Double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
Safety feature:
- Weight overload protection device
- Lifting height limit device
- Voltage lower protection function
- Phase sequence protection function
- Emergency stop function
