| Material: | Q235B | Lifting Height: | 4 M - 30 M |
|---|---|---|---|
| Capacity: | 2 - 25 Ton | Lifting Speed: | Single Speed , Double Speed , Frequency Controlled Speed |
| Supply Power: | 220 - 600 V , 50 - 60 Hz | Duty Group: | ISO M3 - ISO M5 |
| High Light: | monorail electric wire rope hoist,hoisting equipment |
||
8 / 16 Ton Low Headroom Crane Electric Wire Rope Hoist With Pendant Control
Detailed Product Description

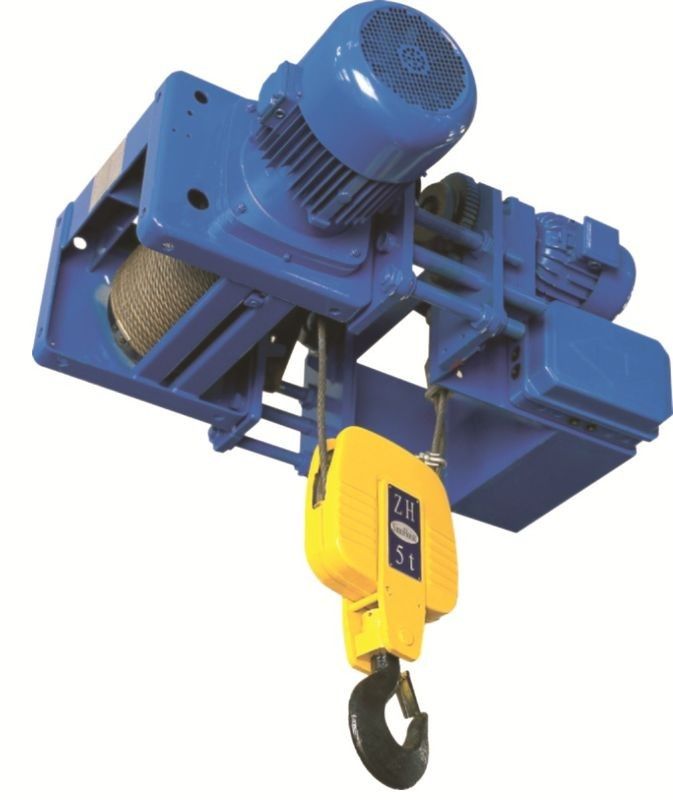

ZH - Type Low Headroom Electric Wire Rope Hoist
It is a newly developed electric hoist on the basis of introducing the advanced German manufacture technologies. It has compact and rectangular structure, its frame is mainly composed of Q235-B welded steel. And the drum of this hoist is made of seamless steel pipe. Its planetary gearbox is inside the hoist drum. It has trolley which can travel smoothly. With light self-weight and light wheel pressure, the low headroom is widely used in warehouse, storehouse and workshop, especially for the height limited plants. For this kind of hoist has the optimal headroom height. This hoist is durable with overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Application
ZH – Type Low Headroom Electric Wire Rope Hoist is mainly applying in height – limited warehouse / workshop / storehouse, and also widely used in heavy industry, material handling plants, and the concrete plants, etc.
Competitive Advantage
- The optimal headroom height for height limited working places.
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
- Corrosion resistance and fatigue resistance.
Higher Security and Reliability
1. Light self - weight and light wheel pressure.
2. Brake and overload protection ensure the safety under any circumstance.
3. The weight switch is as the second up limit to ensure safety.
4. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
5. Low-voltage protection ensures the safe and reliable operation.
6. Efficient high lifting speed, smooth low lifting speed, precise positioning.
7. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
Specifications
|
Capacity |
2 Ton – 25Ton |
|
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
|
Speed |
Lifting |
Single speed |
|
Cross Travelling |
Single speed |
|
|
Working Group |
ISO:M3/M4/M5/M6 |
|
|
Working Environment |
-25-50 degrees |
|
|
Power Supply |
220-600V, 50-60 Hz |
|
|
Rope Reeving |
2/1, 4/1, 4/2, etc. |
|
|
Pendant control or remote control push button |
Included |
|
Technical Data Of Low Headroom Electric Wire Rope Hoist
| Capacity | Lifting Speed (m/min) | Duty | Hmin | Dimensions L,L0 | A1 | B1 | H | Dead | |||||||
| (ton) | E | L1 | B2 | H1 | Weight | ||||||||||
| H4 | H6 | H9 | H12 | H15 | H18 | H24 | H30 | H9 Kg | |||||||
| 3.2 | 8,8/2.0 | M4 | 800 | — | 1165 | 1275 | 1385 | 1495 | 1605 | 1825 | 2045 | 627 | 394 | 387 | 520 |
| — | 365 | 475 | 585 | 695 | 805 | 1025 | 1245 | 514 | 523 | 157 | |||||
| 5 | 4,4/1.0 | M5 | 710 | 1275 | 1385 | 1605 | 1825 | 2045 | — | — | — | 754 | 486 | 401 | 720 |
| 6.3 | 4,4/1.0 | M4 | — | 475 | 585 | 805 | 1025 | 1245 | 514 | 537 | 178 | ||||
| 5 | 8,8/2.0 | M4 | 960 | — | 1230 | 1335 | 1445 | 1555 | 1660 | 1875 | 2090 | 646 | 476 | 466 | 850 |
| — | 400 | 505 | 615 | 725 | 830 | 1045 | 1260 | 519 | 607 | 178 | |||||
| 8 | 4,4/1.0 | M5 | 890 | 1335 | 1445 | 1660 | 1875 | 2090 | — | — | — | 816 | 578 | 500 | 1100 |
| 10 | 4,4/1.0 | M4 | — | 505 | 615 | 830 | 1045 | 1260 | 519 | 626 | 243 | ||||
| 10 | 6.3,8,10,6.3/1.6 | M4 | 1150 | — | 1440 | 1495 | 1600 | 1705 | 1805 | 2015 | 2225 | 751 | 628 | 618 | 1400 |
| — | 455 | 510 | 615 | 720 | 820 | 1030 | 1240 | 620 | 784 | 243 | |||||
| 16 | 3.2,4,5,3.2/0.8 | M5 | 1090 | 1495 | 1600 | 1805 | 2015 | 2225 | — | — | — | 835 | 738 | 678 | 1980 |
| 20 | 3.2,4,5,3.2/0.8 | M4 | — | 510 | 615 | 820 | 1030 | 1240 | 620 | 784 | 243 |
||||
