Product Details:
Payment & Shipping Terms:
|
Color: | Blue | Capacity: | 3.2 Ton - 63 Ton |
---|---|---|---|
Lifting Height: | 4 M - 30 M | Material: | Q235B |
Lifting Speed: | Single Speed , Double Speed , Frequency Controlled Speed | Rope Reeving: | 4/1 , 4/2 , 6/1 , 8/2 |
High Light: | monorail electric wire rope hoist,hoisting equipment |
Easy Operated Remote Control Electric Wire Rope Hoist Winch 3.2 Ton ~ 63 Ton
Detailed Product Description

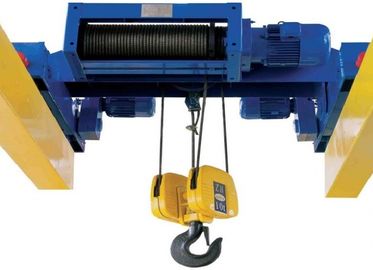

ZH - Type Double Girder Electric Wire Rope Hoist
It is an up to date product by applying and combining the newly technologies from Germany. The hoist frame is mainly composed of Q235-B welded steel. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has double girder trolley with smooth travelling and smooth stopping. With light self-weight and light wheel pressure, this hoist can completely compare to the same kind of hoists from foreign product. The hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Competitive Advantage
- Superior heat dissipation performance
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Single speed, double speed or variable speed if client request.
- Convenient maintenance.
- Overload protection device.
- Easy assembly and convenient installation
Application
ZH – Type Double Girder Electric Wire Rope Hoist has compact design, light self – weight, and travelling trolley, it can be widely used in light duty industry, cement, hydro power industry, coal mining industry, modern material handling industry and military product manufacturing, etc.
Higher Security and Reliability
1. The optimal corrosion resistance under harsh environment.
2. The weight switch is as the second up limit to ensure safety.
3. Low-voltage protection ensures the safe and reliable operation.
4. Brake and overload protection ensure the safety under any circumstance.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.
6. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
Specifications
Capacity |
3.2 Ton – 63 Ton |
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-50 degrees |
|
Power Supply |
220-600V, 50-60 Hz |
|
Rope Reeving |
4/1, 4/2, 6/1, 8/2, etc. |
|
Pendant control or remote control push button |
Included |
Technical Data Of Double Girder Electric Wire Rope Hoist
Type |
Capacity |
Main Lifting speed |
Rope |
Working |
Hmin |
W,L0 |
B |
H |
B1 |
Weight |
||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
||||||||||
ZH320BS |
3.2 |
8, 8/2.0 |
4/2 |
M4 |
400 |
1200 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
1600 |
580 |
— |
650 |
4 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||
5 |
4, 4/1.0 |
4/1 |
M5 |
450 |
1200 |
1200 |
1800 |
2200 |
2500 |
— |
— |
1600 |
580 |
— |
730 |
|
6.3 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||
8 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||
8 |
2.5, 2.5/0.6 |
6/1 |
M5 |
700 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
1720 |
620 |
— |
1250 |
|
10 |
2.5, 2.5/0.6 |
6/1 |
M4 |
|||||||||||||
ZH500BS |
5 |
8, 8/2.0 |
4/2 |
M4 |
450 |
1200 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
1600 |
645 |
— |
1000 |
6.3 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||
8/3.2 |
4, 4/1.0 |
4/1 |
M5 |
600 |
1400 |
1400 |
1800 |
2200 |
2500 |
— |
— |
1720 |
710 |
— |
1400 |
|
10/3.2 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||
12.5/3.2 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||
12.5/3.2 |
2.5, 2.5/0.6 |
6/1 |
M5 |
850 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
2020 |
755 |
400 |
2300 |
|
16/3.2 |
2.5, 2.5/0.6 |
6/1 |
M4 |
|||||||||||||
ZH1000BS |
10/3.2 |
6.3, 8, 10, 6.3/1.6 |
4/2 |
M4 |
600 |
1400 |
1400 |
1400 |
1600 |
1800 |
2000 |
2200 |
1720 |
810 |
500 |
1500 |
12.5/3.2 |
6.3, 8 |
4/2 |
M3 |
|||||||||||||
16/5 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M5 |
700 |
1600 |
1600 |
1800 |
2200 |
2500 |
— |
— |
2020 |
880 |
560 |
2600 |
|
20/5 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M4 |
|||||||||||||
25/5 |
3.2, 4 |
4/1 |
M3 |
1000 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
2380 |
955 |
600 |
3200 |
|
25/5 |
2, 2.5, 3.2, 2/0.5 |
6/1 |
M5 |
|||||||||||||
32/5 |
2, 2.5, 3.2, 2/0.5 |
6/1 |
M4 |
Type |
Capacity |
Main Lifting speed |
Rope |
Working |
Hmin |
W,L0 |
B |
H |
Weight |
||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
|||||||||
ZH1600BS |
12.5 |
6.3, 8, 10 |
4/2 |
M5 |
850 |
— |
1800 |
1800 |
1800 |
2000 |
2200 |
2500 |
2020 |
905 |
3000 |
16 |
6.3, 8, 10 |
4/2 |
M4 |
||||||||||||
20 |
6.3, 8 |
4/2 |
M3 |
||||||||||||
20 |
4, 5, 6.3 |
6/2 |
M5 |
1400 |
2000 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
2380 |
1010 |
3600 |
|
25 |
4, 5, 6.3 |
6/2 |
M4 |
||||||||||||
32 |
4, 5 |
6/2 |
M3 |
||||||||||||
25 |
3.2, 4, 5 |
8/2 |
M5 |
1300 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2380 |
1010 |
4000 |
|
32 |
3.2, 4, 5 |
8/2 |
M4 |
||||||||||||
40 |
3.2, 4 |
8/2 |
M3 |
||||||||||||
ZH2000BS |
20 |
5, 6.3, 8 |
4/2 |
M5 |
950 |
— |
1800 |
1800 |
1800 |
2000 |
2200 |
2500 |
2380 |
1140 |
4000 |
25 |
5, 6.3, 8 |
4/2 |
M4 |
||||||||||||
32 |
5, 6.3 |
4/2 |
M3 |
||||||||||||
32 |
3.2, 4, 5 |
6/2 |
M5 |
1500 |
2000 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
2675 |
1225 |
5000 |
|
40 |
3.2, 4, 5 |
6/2 |
M4 |
||||||||||||
50 |
3.2, 4 |
6/2 |
M3 |
||||||||||||
40 |
2.5, 3.2, 4 |
8/2 |
M5 |
1400 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2675 |
1225 |
5500 |
|
50 |
2.5, 3.2, 4 |
8/2 |
M4 |
||||||||||||
63 |
2.5, 3.2 |
8/2 |
M3 |
1500 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2675 |
1225 |
5800 |
