Remote Control CD MD Heavy Duty Rope Hoist 20 Ton With Double Speed

China Remote Control CD MD Heavy Duty Rope Hoist 20 Ton With Double Speed supplier

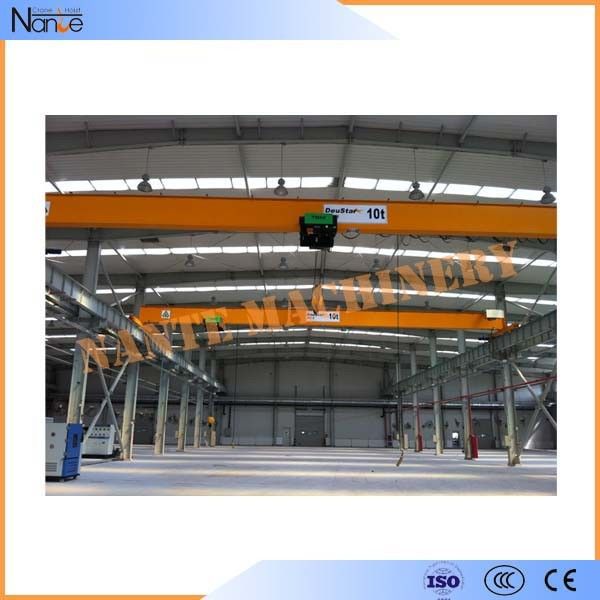

Large Image :  Remote Control CD MD Heavy Duty Rope Hoist 20 Ton With Double Speed

Product Details:

Place of Origin: CHINA
Brand Name: NANTE
Certification: ISO9001, CE, CCC
Model Number: Electric Wire Rope Hoist

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Seaworthy packing
Delivery Time: Within 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Year
Detailed Product Description
Model Number:: CD/MD Usage:: Construction Hoist
Power Source:: Electric, 3P, 380V, 50HZ, Other Type Also Available Sling Type:: Wire Rope
Maximum Lifting Weight:: 20ton Maximum Lifting Height:: Max.30m
Color:: Customized Hoist Type:: Single Track Standard Hoist
High Light:

low headroom trolley hoist

,

heavy duty rope hoist

Specifications



1. Remote Control CD MD Wire Rope Electric Hoist For Mining, Factory, Dock
2. Usage: Material handling, metallurgy, etc




Remote Control CD MD Wire Rope Electric Hoist For Mining, Factory, Dock,

Wire rope hoist, steel rope hoist, Double speed hoist, Wire rope electric hoist, Mature design rope hoist.



Product Description



Nante can provide CD1&MD1 hoist with tough quality. A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted



Introduction



CD1 / MD1 electrical hoist is a compact and light weight hoist with a small volume. CD1 /MD1 hoists offer convenient operation as it is very versatile in its usage areas. It can be installed separately on the overhead beam, in either manual or electrical mode. It can also be installed on double beams, in cantilever or gantry cranes.



Applications



Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%. No use in potentially explosive filled with sulfuric acid, and the lifting of melted metal, poison, flammable material. Protection device is needed when used in serious dust and outdoor place.



Advantages



1. Variety of specifications, lifting, and wide operating speed range of options

2. Compact structure, smooth operation

3. Cost-effective, easy to use

4. Parts versatility

5. You can use different speed manual car and electric car

6. Motor rotor motor with a tapered, set power and braking force in one

7. Hook made of high strength steel and fitted with locking device

8. Overload, over current, loss of pressure, breaking equal protection

9. Power for a wide range, 36V safe voltage control can be divided into wired and wireless control makes the operation more secure

10. Asbestos-free brake materials and other harmful ingredients, more environmentally friendly products



General Drawing

Remote Control CD MD Heavy Duty Rope Hoist 20 Ton With Double Speed 0





Technical Parameter





Type

 Capacity
(t)

Classifi-
cation

Lifting
Standard(m)

Lifting Speed
(m/min)

Traveling
speed
(m/min)

Rope
reeving

Lifting Motor
type power(kw)

Travelling Motor
    type
   power(kw)
(suspended type)

protection
class

I-beam
Track
(mm)

Min
Turning
Radius

N.W
(kg)


Cd1
Md1

0.5

M3

6

8
8/0.8

20
20/6.7
30
30/10

2/1

ZDY11-4(0.8)
ZDS1-0.2/0.8
(0.2/0.8)

ZDY11-4
(0.2)

IP44
IP54

88-124

1

135

9

1

140

12

1

155

18

1.8

175

24

2.5

185

30

3.2

195

1

M3

6

8
8/0.8

20
20/6.7
30
30/10

2/1

ZD22-4(1.5)
ZDS1-0.2/1.5
(0.2/1.5)

ZDY11-4
(0.2)

IP44
IP54

88-124

1

180

9

1

190

12

1.2

205

18

1.8

220

24

2.5

235

30

3.2

255

2

M3

6

8
8/0.8

20
20/6.7
30
30/10

2/1

ZD31-4(3)
ZDS1-0.4/3
(0.4/3)

ZDY12-4
(0.4)

IP44
IP54

100-152

1.2

250

9

1.2

265

12

1.5

300

18

2

320

24

2.8

340

30

3.5

360

3

M3

6

8
8/0.8

20
20/6.7
30
30/10

2/1

ZD32-4(4.5)
ZDS1-0.4/4.5
(0.4/4.5)

ZDY12-4
(0.4)

IP44
IP54

100-152

1.2

320

9

1.2

340

12

1.5

350

18

2

380

24

2.8

410

30

3.5

440





Type

 Capacity
(t)

Classifi-
cation

Lifting
Standard(m)

Lifting Speed
(m/min)

Traveling
speed
(m/min)

Rope
reeving

Lifting Motor
type power(kw)

Travelling Motor
    type
   power(kw)
(suspended type)

protection
class

I-beam
Track
(mm)

Min
Turning
Radius

N.W
(kg)

(Cd1
YMD1Y)

5

M3

6

8
8/0.8

20
20/6.7
30
30/10

2/1

ZD41-4(7.5)
ZDS1-0.8/7.5
(0.8/7.5)
ZD51-4
(13)

ZDY21-4
(0.8)

IP44
IP54

116-180

1.5

590

9

1.5

630

12

1.5

650

18

2.5

700

24

3

750

30

4

800

10

M3

6

7
7/0.7

20
20/6.7
30
30/10

4/2

ZDS1-1.5/13

2xZDY21-4
(0.8)

IP44
IP54

142-180

1.5

820

9

1.5

875

12

1.5

960

18

2.5

1015

24

3

1090

30

4

1125

16

M3

6

3.5
3.5/0.35

20
20/6.7
30
30/10

4/1

ZD51-1.5
13
ZDS13/1.5
13/1.5

2xZDY21-4
(2x0.8)

IP44
IP54

150-178

3

700

9

3.5

750

12

3.8

850

15

4

850

20

M3

6

3.5
3.5/0.35

20
20/6.7
30
30/10

4/1

ZD51-1.5
13
ZDS13/1.5
13/1.5

2xZDY21-4
(2x0.8)

IP44
IP54

158-178

3

720

9

3.5

770

12

3.8

870

15

4

880



PACKING
Remote Control CD MD Heavy Duty Rope Hoist 20 Ton With Double Speed 1
