DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane

China DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier
DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane supplier

Large Image :  DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane

Product Details:

Place of Origin: China Mainland
Brand Name: Huge Lift
Certification: CE, ISO9001:2008
Model Number: HP1000

Payment & Shipping Terms:

Minimum Order Quantity: 30 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, paypal
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Capacity: 500KG Single Line, 800KG Double Line Rotation: 360degrees Manual
Color: Yellow, Black, Red
High Light:

electric wire rope winch

,

12v Electric Winch

This range of DC 12V electric winch hoist is developed based on our patented technology.It's an achievement of our company to meet the market demands, and has many advantages over its coutnerparts. The product offers single line lifting capacity of 500KG, and double line lifting capacity of 800KG when the pulley block is implemented.



1.The winch hoist supports material lifting from all directions, thanks to its 360 degrees rotatable supporting base.This design ensures convenient use and high operation efficiency.

2.The lifting arm supports both angle and length adjusting.It can also be folded up to save space.

3.Products colors are optional, black, yellow and red. Upon requests, we can also customize products based on clients' individual demands.



Foldable and compact Vehicle 12V DC Winch / utility crane

Features:
structually compact, foldable
360degrees rotating
light weight
minimal space required



It is well received in Russia, Australia, America and Germany,etc.



Specifications

model: HP1000

lifting capacity: 500kg  for single  line , 800kg for double line

reach max.(from center of rotation): 1490mm

rotation(continuous) with brake: 360 manual

lifting cable: 4.8mmx4.5m

line speed with No load: 3.7m/min

power requirement: 12V DC 90 amps

control: 1.8m remote

mounting base: 250x250x18mm

mounting bolt hole pattern:170x170mm

finish: powder coated

weight of crane: 115lbs

warranty: 1year

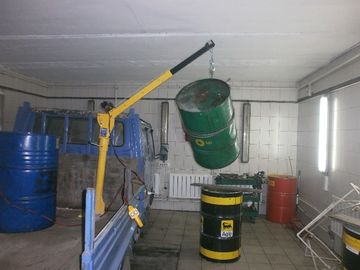

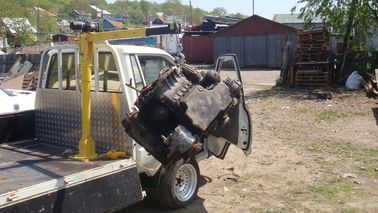

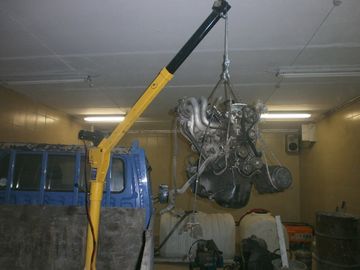

DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 0

DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 1

DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 2

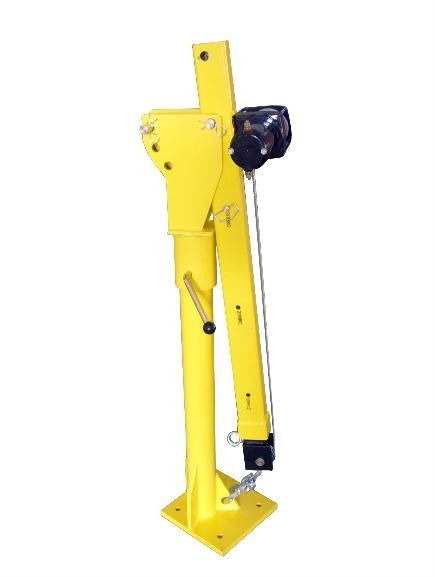

Small Utility Vehicle Crane (12V DC Crane HP1000)

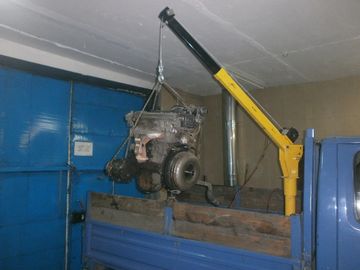

DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 3



DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 4DC 12Volt Foldable pick-up trucks small hoist 500KG utility crane 5
