Product Details:
Payment & Shipping Terms:
|
Color: | Blue | Material: | Q235B |
---|---|---|---|
Capacity: | 3.2 - 63 Ton | Lifting Height: | 4 M - 30 M |
Duty Group: | ISO M3 - ISO M5 | Working Ambient: | Indoor / Outdoor |
High Light: | high speed hoist,industrial crane and hoist |

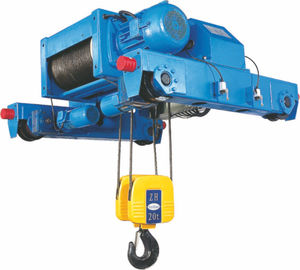

Remote Control High Speed Electric Crane Hoist , Max Lifting Height 120m
Detailed Product Description
ZH - Type Double Girder Hoist
It is a newly developed electric hoist on the basis of introducing the advanced German manufacture technologies. The compact design hoist has high strength frame and drum where the planetary gearbox is inside. The hoist has double girder trolley with smooth travelling and smooth stopping. With light self-weight and light wheel pressure, this hoist can completely compare to the same kind of hoists from foreign product. The hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Competitive Advantages
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
- Corrosion resistance and fatigue resistance
Application
ZH – Type Double Girder Electric Wire Rope Hoist has compact design, light self – weight, and travelling trolley, it can be widely used in light duty industry, cement, hydro power industry, coal mining industry, modern material handling industry and military product manufacturing, etc.
Specifications
Capacity |
3.2 Ton – 63Ton |
|
Lifting Height |
General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max lifting height could be 120m |
|
Speed |
Lifting |
Single speed |
Cross Travelling |
Single speed |
|
Working Group |
ISO:M3/M4/M5/M6 |
|
Working Environment |
-25-50 degrees |
|
Power Supply |
220-600V, 50-60 Hz |
|
Rope Reeving |
2/1, 4/1, 4/2, 6/1, 8/2, etc. |
|
Pendant control or remote control push button |
Included |
Technical Data Of Double Girder Hoist
Type |
Capacity |
Main Lifting speed |
Rope |
Working |
Hmin |
W,L0 |
B |
H |
B1 |
Weight |
||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
||||||||||
ZH320BS |
3.2 |
8, 8/2.0 |
4/2 |
M4 |
400 |
1200 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
1600 |
580 |
— |
650 |
4 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||
5 |
4, 4/1.0 |
4/1 |
M5 |
450 |
1200 |
1200 |
1800 |
2200 |
2500 |
— |
— |
1600 |
580 |
— |
730 |
|
6.3 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||
8 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||
8 |
2.5, 2.5/0.6 |
6/1 |
M5 |
700 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
1720 |
620 |
— |
1250 |
|
10 |
2.5, 2.5/0.6 |
6/1 |
M4 |
|||||||||||||
ZH500BS |
5 |
8, 8/2.0 |
4/2 |
M4 |
450 |
1200 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
1600 |
645 |
— |
1000 |
6.3 |
6.3, 6.3/1.6 |
4/2 |
M3 |
|||||||||||||
8/3.2 |
4, 4/1.0 |
4/1 |
M5 |
600 |
1400 |
1400 |
1800 |
2200 |
2500 |
— |
— |
1720 |
710 |
— |
1400 |
|
10/3.2 |
4, 4/1.0 |
4/1 |
M4 |
|||||||||||||
12.5/3.2 |
3.2, 3.2/0.8 |
4/1 |
M3 |
|||||||||||||
12.5/3.2 |
2.5, 2.5/0.6 |
6/1 |
M5 |
850 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
2020 |
755 |
400 |
2300 |
|
16/3.2 |
2.5, 2.5/0.6 |
6/1 |
M4 |
|||||||||||||
ZH1000BS |
10/3.2 |
6.3, 8, 10, 6.3/1.6 |
4/2 |
M4 |
600 |
1400 |
1400 |
1400 |
1600 |
1800 |
2000 |
2200 |
1720 |
810 |
500 |
1500 |
12.5/3.2 |
6.3, 8 |
4/2 |
M3 |
|||||||||||||
16/5 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M5 |
700 |
1600 |
1600 |
1800 |
2200 |
2500 |
— |
— |
2020 |
880 |
560 |
2600 |
|
20/5 |
3.2, 4, 5, 3.2/0.8 |
4/1 |
M4 |
|||||||||||||
25/5 |
3.2, 4 |
4/1 |
M3 |
1000 |
1800 |
2000 |
2500 |
— |
— |
— |
— |
2380 |
955 |
600 |
3200 |
|
25/5 |
2, 2.5, 3.2, 2/0.5 |
6/1 |
M5 |
|||||||||||||
32/5 |
2, 2.5, 3.2, 2/0.5 |
6/1 |
M4 |
Type |
Capacity |
Main Lifting speed |
Rope |
Working |
Hmin |
W,L0 |
B |
H |
Weight |
||||||
H4 |
H6 |
H9 |
H12 |
H15 |
H18 |
H24 |
|||||||||
ZH1600BS |
12.5 |
6.3, 8, 10 |
4/2 |
M5 |
850 |
— |
1800 |
1800 |
1800 |
2000 |
2200 |
2500 |
2020 |
905 |
3000 |
16 |
6.3, 8, 10 |
4/2 |
M4 |
||||||||||||
20 |
6.3, 8 |
4/2 |
M3 |
||||||||||||
20 |
4, 5, 6.3 |
6/2 |
M5 |
1400 |
2000 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
2380 |
1010 |
3600 |
|
25 |
4, 5, 6.3 |
6/2 |
M4 |
||||||||||||
32 |
4, 5 |
6/2 |
M3 |
||||||||||||
25 |
3.2, 4, 5 |
8/2 |
M5 |
1300 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2380 |
1010 |
4000 |
|
32 |
3.2, 4, 5 |
8/2 |
M4 |
||||||||||||
40 |
3.2, 4 |
8/2 |
M3 |
||||||||||||
ZH2000BS |
20 |
5, 6.3, 8 |
4/2 |
M5 |
950 |
— |
1800 |
1800 |
1800 |
2000 |
2200 |
2500 |
2380 |
1140 |
4000 |
25 |
5, 6.3, 8 |
4/2 |
M4 |
||||||||||||
32 |
5, 6.3 |
4/2 |
M3 |
||||||||||||
32 |
3.2, 4, 5 |
6/2 |
M5 |
1500 |
2000 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
2675 |
1225 |
5000 |
|
40 |
3.2, 4, 5 |
6/2 |
M4 |
||||||||||||
50 |
3.2, 4 |
6/2 |
M3 |
||||||||||||
40 |
2.5, 3.2, 4 |
8/2 |
M5 |
1400 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2675 |
1225 |
5500 |
|
50 |
2.5, 3.2, 4 |
8/2 |
M4 |
||||||||||||
63 |
2.5, 3.2 |
8/2 |
M3 |
1500 |
2000 |
2000 |
2200 |
2500 |
2800 |
3200 |
4000 |
2675 |
1225 |
5800 |
