Four Rope Mechanical Orange Peel Grapple 30m³ for Loading Sawdust and Mineral Powder

China Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder supplier
Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder supplier Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder supplier Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder supplier Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder supplier

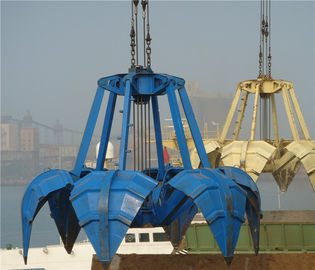

Large Image :  Four Rope Mechanical Orange Peel Grapple 30m³ for Loading Sawdust and Mineral Powder

Product Details:

Place of Origin: China
Brand Name: EUMESS
Certification: BV/CCS/CE
Model Number: FR16-5-7.76

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 60 working days after received your prepayment
Payment Terms: T/T or L/C
Supply Ability: 500sets per year
Contact Now
Detailed Product Description
Product Name: Four Ropes Mechanical Orange Peel Grab 30m³ For Loading Sawdust Application: Loading Mineral Powder
Standard: ISO9001 Feature: Mechanical Control
Grab Volume: 30m³

Four Ropes Mechanical Orange Peel Grab 30m³ for Loading Sawdust



Description:





Crane lifting capacity (t)

2.7

3.2

4.0

5.0

6.3

8.0

10.0

12.5

16.0

20.0

25.0

32.0

D.W(Kg)

3fold

1700

1840

2300

2640

3120

3820

4640

5740

7520

9360

11520

14480

4fold

1740

1880

2350

2700

3190

3910

4760

5920

7760

9680

11860

14920

volume     (m3)

0.6

0.8

1.0

1.4

1.9

2.5

3.2

4.0

5.0

6.3

8.0

10.4

No.of Peels

6

6

6

6

6

6

6

6

6

6

6

6

pulley

Dia.

280

280

280

315

355

400

450

500

560

630

630

710



Rope

Dia.

12

12

14

16

18

20

22

24

26

28

32

36

L

3fold

8.4

8.7

8.8

9.9

10.5

11.7

12.8

13.6

15.0

16.7

17.4

18.0

4fold

9.4

9.6

9.9

11.1

11.8

13.1

14.3

15.3

16.8

18.7

19.4

20.3

R

3fold

2820

2940

3120

3660

3750

4200

4530

4950

5190

5850

6210

6720

4fold

3760

3920

4160

4880

5000

5600

6040

6600

6920

7800

8280

8960

Dimension  mm



A

2100

2250

2290

2680

2860

3250

3480

3780

4060

4620

4750

4920

B

1780

1890

1940

2250

2420

2740

2930

3200

3440

3800

3990

4260

C

1910

1960

2000

2290

2460

2780

2910

3160

3380

3830

4020

4320

D

2480

2650

2720

3160

3380

3820

4060

4430

4660

5140

5480

5780

E

120

120

120

160

180

600

800

1000

1100

1280

1280

1400

F

300

300

300

340

380

430

480

530

590

670

670

760







Brief Introduction:

Orange Peel Grab is an efficient tool for loading and unloading steel scraps, ore and clinker
Orange Peel Grab’s mechanical structure for opening & closing is succinct and original.
 It is easy to use and  can work under any circumstances





Advantages:



Decreased cycle time thereby reducing operational cost.Enhanced ease and convenience of operation.

into any kind od Hopper irrespective of the size;Simple maintenance

Shockless,noiseless and smooth operation;BV,CCS certificate supply





Drawing:

Four Rope Mechanical Orange Peel Grapple 30m³  for Loading Sawdust and Mineral Powder
