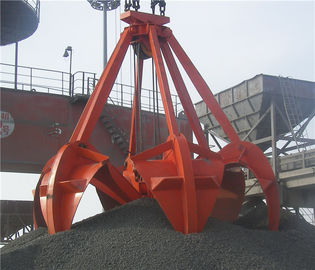

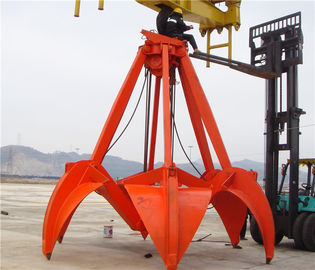

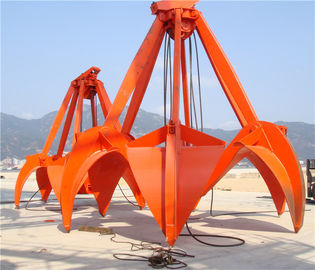

16T Ropes Mechanical Orange Peel Grab 5m³ for Loadiing Sand Stone / Steel Scraps and Ore

China 16T Ropes Mechanical Orange Peel Grab 5m³  for Loadiing Sand Stone / Steel Scraps and Ore supplier
16T Ropes Mechanical Orange Peel Grab 5m³  for Loadiing Sand Stone / Steel Scraps and Ore supplier 16T Ropes Mechanical Orange Peel Grab 5m³  for Loadiing Sand Stone / Steel Scraps and Ore supplier 16T Ropes Mechanical Orange Peel Grab 5m³  for Loadiing Sand Stone / Steel Scraps and Ore supplier

Large Image :  16T Ropes Mechanical Orange Peel Grab 5m³ for Loadiing Sand Stone / Steel Scraps and Ore

Product Details:

Place of Origin: China
Brand Name: EUMESS
Certification: BV/CCS/CE
Model Number: FR20-6.3-9.68

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 40 working days after received your prepayment
Payment Terms: T/T or L/C
Supply Ability: 500sets per year
Detailed Product Description
Product Name: 16t Ropes Mechanical Orange Peel Grab 5m³ For Loadiing Sand Stone Application: Loading Sand Stone
Standard: ISO9001 Feature: Mechanical Control
Crane Lifting Capacity: 20t Dia.of Rope: 28mm
Grab SWL: 20t Dia.of Pulley: 630mm
Grab Dead Weight: 9.68t Grab Volume: 6.3m³
High Light:

orange peel bucket

,

grapple bucket

16t Ropes Mechanical Orange Peel Grab 5m³ for Loadiing Sand Stone



Description:





Crane lifting capacity (t)

2.7

3.2

4.0

5.0

6.3

8.0

10.0

12.5

16.0

20.0

25.0

32.0

D.W(Kg)

3fold

1700

1840

2300

2640

3120

3820

4640

5740

7520

9360

11520

14480

4fold

1740

1880

2350

2700

3190

3910

4760

5920

7760

9680

11860

14920

volume     (m3)

0.6

0.8

1.0

1.4

1.9

2.5

3.2

4.0

5.0

6.3

8.0

10.4

No.of Peels

6

6

6

6

6

6

6

6

6

6

6

6

pulley

Dia.

280

280

280

315

355

400

450

500

560

630

630

710



Rope

Dia.

12

12

14

16

18

20

22

24

26

28

32

36

L

3fold

8.4

8.7

8.8

9.9

10.5

11.7

12.8

13.6

15.0

16.7

17.4

18.0

4fold

9.4

9.6

9.9

11.1

11.8

13.1

14.3

15.3

16.8

18.7

19.4

20.3

R

3fold

2820

2940

3120

3660

3750

4200

4530

4950

5190

5850

6210

6720

4fold

3760

3920

4160

4880

5000

5600

6040

6600

6920

7800

8280

8960

Dimension  mm



A

2100

2250

2290

2680

2860

3250

3480

3780

4060

4620

4750

4920

B

1780

1890

1940

2250

2420

2740

2930

3200

3440

3800

3990

4260

C

1910

1960

2000

2290

2460

2780

2910

3160

3380

3830

4020

4320

D

2480

2650

2720

3160

3380

3820

4060

4430

4660

5140

5480

5780

E

120

120

120

160

180

600

800

1000

1100

1280

1280

1400

F

300

300

300

340

380

430

480

530

590

670

670

760







Brief Introduction:



Orange Peel Grab is an efficient tool for loading and unloading steel scraps, ore and clinker.

Orange Peel Grab’s mechanical structure for opening & closing is succinct and original.

It is easy to use and  can work under any circumstances.





Advantages:



  • Decreased cycle time thereby reducing operational cost.
  • Enhanced ease and convenience of operation.
  • into any kind od Hopper irrespective of the size;
  • Simple maintenance
  • Shockless,noiseless and smooth operation;
  • BV,CCS certificate supply





Drawing:

16T Ropes Mechanical Orange Peel Grab 5m³  for Loadiing Sand Stone / Steel Scraps and Ore 0
