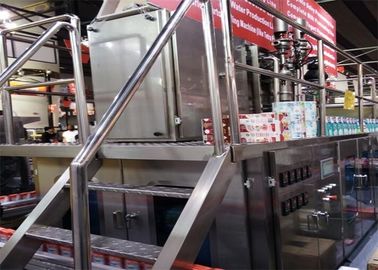

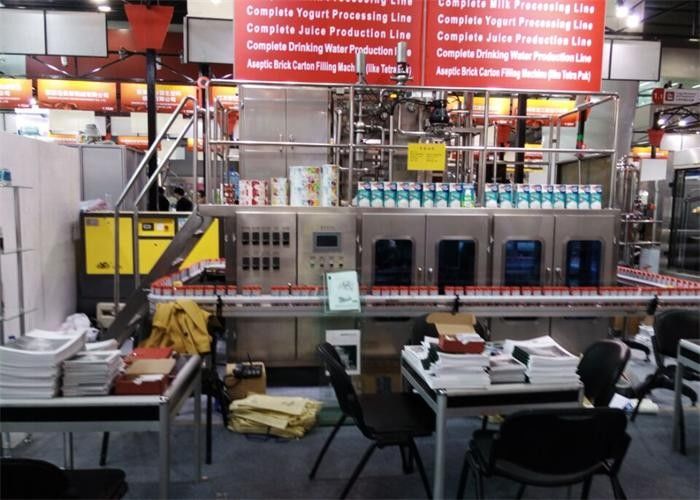

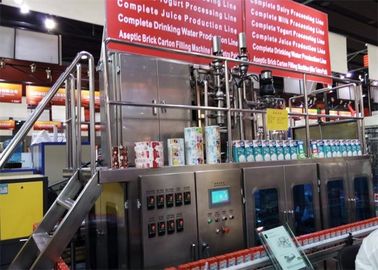

Automatic Tetra Pack Juice Filling Machine , Aseptic Carton Filling Machine

Introduction

Aseptic carton filling machine with the filling volume up to 1000ml and packing speed close to 2000 of 1000ml brick cartons per hour

The brick carton is made from numerous layers of paper, aluminum, and plastic. It is mainly used to pack milk and still beverages. The aseptic carton filling machine comes in two types: standard and slim. Both types are manufactured from stainless steel. Their electrical elements, pneumatic element, and other core parts are provided by world-renowned manufactures. Combined with the advanced control techniques, those components and parts help the machine to achieve high operation stability. The machine’s reliable performance is best demonstrated by the fact that it is able to run for dozens of hours without any big mechanical or control fault

State of the art devices include the cryogenic heat exchanger and PP strip conveyor which own independent intellectual property. Those devices help ensure aseptic packaging. Meanwhile, for secure and tight seal, the middle-seal technique and high-frequency heat sealing treatment are adopted. The machine owns many national patent, and is very popular among customers.

Computer automatic control and friendly user-machine interface make accurate filling and simple operation possible. As a matter of fact, the whole filling process only needs one man to accomplish. Additionally, the machine is equipped with ink jet printer which carries out automatic printing on the carton package after filling, There is also steam jetting out or sterilize the filling room and package ends. The flash pasteurization technique ensures nice flavor and good visual effect of the beverages.

Parameters

we  have 5 specifications :   2000 Cartons per Hour for 1000ML,

                                                2000 Cartons per Hour for 500ML,

                                                3000 Cartons per Hour for  200-250ML,

                                                4000 Cartons per Hour for  200-250ML

                                                6000 Cartons per Hour for  200-250ML,

                                                8000 Cartons per Hour for  200-250ML,

The main features are:

 a ,The forming system we choose our own patent rectangular forming method instead of

roundness system which use by pak, this system made the running much more stable,

the function much more reliable, the exterior appearance of the product much perfect.

b, We choose roll extrusion as the carton conveyor, the fixed amount, cutting carton and

forming system we use mechanical transmission multilayer push-draw mode which instead

 pack’s mechanical grabbing system, our method makes the machine runs much more

stable.

c,Automatic finished all the job step, which includes run over the scroll reposefully,

 print the date and batch number, stick plastic tape, chemical and physical sterilizing,

 roll into cylinder, filling material, sealing-off, molding, cutting and horn-shaped.

d,This design blend into modern “optical, mechanical and electronic integration” and skillful

manufacture. We choose closed loop to control the tension, use auto-electricity for detection,

PLC control the system, oversaw and operated by human-machine interface, radiant heat and high frequency induction heating put to work skillfully

then make the sealing much firm and reliable in cross and vertical direction, use mechanical

as main drive and barometric as assistant drive. Scientific and reasonable use, we make this

machine operating freely and stable.

e,The main transmission is mechanical and the auxiliary drive is vapor-pressure type. scientifically and rationally use, made the machine runs much more freely

and stable.

f, We add a special design: change the scroll without stop operating. This design can change

 the scroll freely under the operating situation.
