20 Ft Container Lifting Equipment Container Spreaders with Mechanical Control
-
-
Large Image :
20 Ft Container Lifting Equipment Container Spreaders with Mechanical Control
|
Product Details:
Place of Origin: |
China |
Brand Name: |
EUMESS |
Certification: |
BV/CCS/CE |
Model Number: |
SAS40-36 |
Payment & Shipping Terms:
Minimum Order Quantity: |
1 set |
Price: |
negotiation |
Packaging Details: |
Nude packing |
Delivery Time: |
30 working days after received your prepayment |
Payment Terms: |
T/T or L/C |
Supply Ability: |
500 sets per year |
|
Detailed Product Description
Product Name: |
20feet Container Spreader Semi-automatic For Lifting ISO 20feet Containers |
Application: |
Containers Lifting |
Standard: |
ISO9001 |
Feature: |
Mechanical Control |
Slings: |
BV/CCS Certificate |
Color: |
Follow The Requirement Of Customer |
High Light: |
container lifting equipment, container lifting spreader |
20feet Container Spreader Semi-automatic for Lifting ISO 20feet Containers
Specifications:
Suit for container
|
20feet
|
40feet |
Spreader SWL
|
32t
|
36t |
Spreader Dead Weight
|
2.1t
|
3.2t |
Dia. Of ropes
|
32mm
|
36mm |
Length of spreader
|
6054mm
|
12186mm |
Width of spreader
|
2438mm
|
2438mm |
Height of spreader
|
680mm
|
700mm |
Min. Working height
|
3500mm
|
6950mm |
Description:

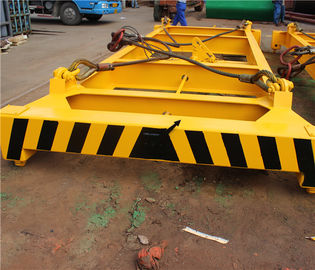

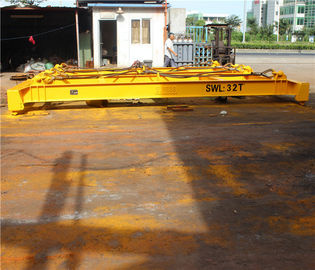

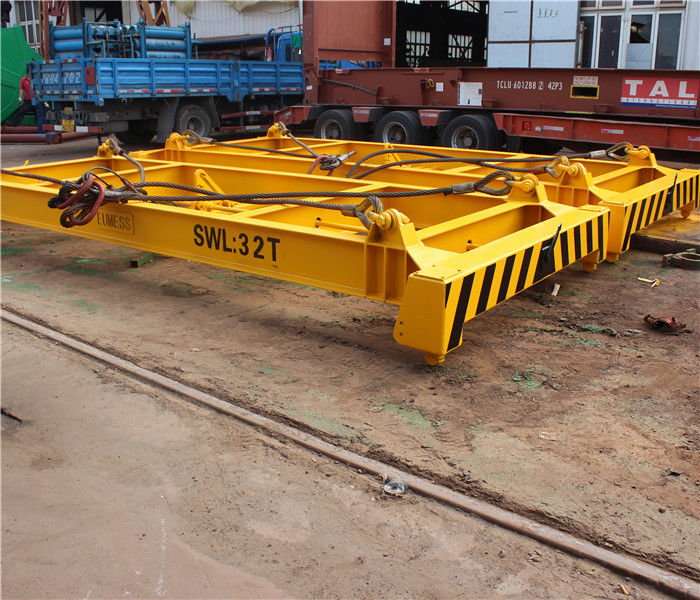

- The semi-automatic container spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels.
- The twistlocks are activated by landing and lifting the spreader from the container by the crane operator.
- No hydraulic or electric systems are needed.
- Available in 20' and 40' versions to handle 20-40 ISO containers.
- Capacity up to 36 Tons,Light weight spreader 20' Spreader - 2.2t 40' Spreader - 3.2t
- The Semi-Automatic container spreader is used to handle ISO containers.
- The fixed frame is mounted to a crane by bridle sling and provides a simple way to load and unload containers.
- Great for ports who need to handle containers on and off a ship, but have lower lift counts.
Applications:
Container ships, port, logistics company
Competitive Advantage:
- Easy operation
- Strong structure
- Less malfunction/
- BV,CCS certificate supply
