Automatic 24-hours Running Electric Overhead Crane With Grab Bucket For Lifting Waste To Boiler
Applications:

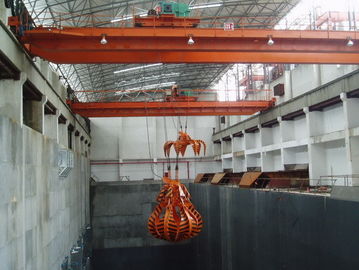

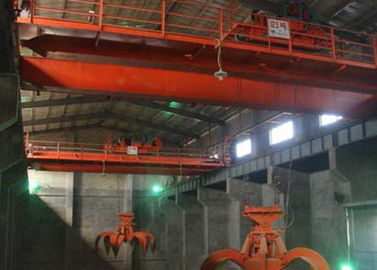

The waste grab crane is an important equipment of the waste treatment system in modern urban waste burning power plant (garbage-burning power plant).
It is working above the waste storage pit and mainly used in waste feeding, handling, stirring, reclaiming and weighing.
Description:
- Structural materials are made of Q345B with high strength and fatigue-resistance.
- The main end carriage is connected with high-strength bolts and is easy in transportation and installation.
- Trolley frame of the assembled wheel is integrally machined, which prevents the wheel from seizure even under the most serious conditions and thus increase the service life of both the crane and the plan house.

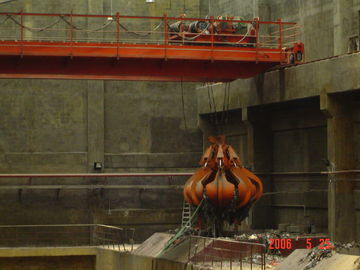

- The bucket of the 4-lifting points anti-swimming structure prevents it from collision with refuse-pond.
- Special design of lifting mechanism:
A. Barrel gear coupling with auto-aligning function.
B. Block brake with auto-centering function.
C. Power free cable reel keeps the winding and unwinding speed of cable consistent with the lifting and lowering speed of the bucket.
D. Weighting mechanism with four transducers promised the high accuracy.

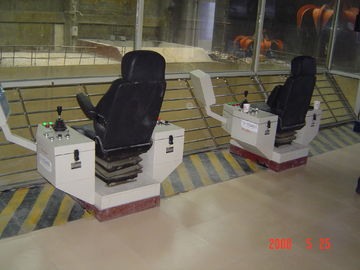

- Automatic operation: the driver may knock the touch screen to realize the entire operation cycle of the crane and finish production tasks.
- Automatic weighting: the weighting system not only weights, prints out reports and calculates the refuse quantity, but also controls the process under load state.
- Remote monitor system: the product is connected with server computer through LAN to monitor running state of each item.
- TV monitor system supervises the conditions of refuse at each feed port, inlet and outlet.
Specifications:
General parameters of widely use waste grab crane
|
Lifting Capacity (T) |
5T |
10T |
16T |
20T |
||
|
Max Lifting Height (M) |
20m |
18m |
22m |
26m |
||
|
Span (M) |
10.5-31.5 |
|||||
|
Working System |
A8 |
|||||
|
Speed (M/Min) |
Trolley |
Hoisting |
40.1 |
40.7 |
41.8 |
48.6 |
|
Travelling |
44.6 |
45.7 |
43.2 |
43.2 |
||
|
Bridge travelling |
93.7-114.4 |
112.5-101 |
98-87.3 |
87.3 |
||
|
Weight (T) |
Trolley |
5.2/5.9 |
8.2/9.1 |
14.8/15.9 |
19.3/20.4 |
|
|
Total |
Indoor |
19.9-41.3 |
26.5-50.4 |
47.3-67.9 |
56.1-75.6 |
|
|
Outdoor |
20.7-42.1 |
27.4-51.2 |
48.5-69 |
57.3-76.8 |
||
|
Grab |
Volume (CUM) |
2.5-0.75 |
5-1.5 |
8-2.5 |
10--3 |
|
|
Dead weight (KG) |
2632-2546 |
4800-4793 |
7841-8305 |
9812-10123 |
||
|
Rail recommended |
43kg/m, QU70 |
|||||
|
Power Source |
3Phase AC 380V 50HZ (As your demand) |
|||||
Competitive Advantage:
- High-strength and high-flexibility’s bridge frame.
- Adopt no-fault design’s lifting mechanism.
- Unpowered drive type cable drum.
- High-precision weighting method(have patent)
- Surface treatment:sand blasting,spraying process of two primer, one intermediate paint, two layer of finish paint
- Have proprietary property rightshave multiple advanced function’s electric control system.
- With extra-strong working strength, high travelling speed, frequent start and braking, accurate location, semi-automatic/automatic procedure control.
- Crane manufacture and control technique is leading position in domestic.
