Product Details:
Payment & Shipping Terms:
|
| Microphone: | Built-in Microphone | Audio Coding Standard: | G.711A |
|---|---|---|---|
| Image Coding Standard: | H.264 | Image Motion Detection: | Support |
| Video Quality: | VGA@ 25 Fps | Video Storage: | MAX 64G |
| High Light: | ip network camera,house security camera |
||

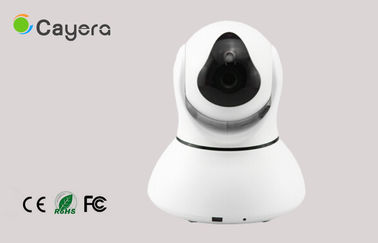

H.264 HD Compression Home IP Camera IR Night Vision Mobile Phone Remote Control IP Camera
Features
Specification
|
Model:HIPC-B310 |
||
|
System |
Main Processor |
Industrial Embedded Microcontroller Hi3518E |
|
Operating System |
Embedded LINUX Operating System |
|
|
Video |
image sensor |
1 million pixel CMOS |
|
Image coding standard |
H.264 |
|
|
Video Standard |
PAL/NTSC |
|
|
monitor image quality |
1280*720 |
|
|
video quality |
VGA@ 25 fps |
|
|
Image motion detection |
Support |
|
|
Minimum illumination |
0.1LUX/F1.2 |
|
|
Grab function |
Support |
|
|
Audio |
audio coding standard |
G.711A |
|
audio input |
Built-in 38dB microphone |
|
|
audio output |
Built-in 8 ohm, 1.5 watt speakers |
|
|
video management |
Video mode |
Manual/Timer/Motion / Schedule |
|
Video Storage |
TF card MAX 64G |
|
|
Alarm |
Alarm alarm input |
learning wireless sensor alarm input |
|
Alarm Triggered |
Speakers alarmAlarm recordingCaptureEmail |
|
|
Others |
network |
Other network an RJ45 connector, 10 / 100M adaptive |
|
TF |
a TF card interface |
|
|
Wifi |
support,802.11 b/g/n |
|
|
Power |
DC 5V 2A |
|
|
PTZ control |
Built-in horizontal and vertical control motor |
|
|
Power Consumption |
1.5W |
|
|
Operating temperature |
0℃－＋55℃ |
|
|
Operating humidity |
10%－90% |
|
|
Size |
103*110*112MM |
|
|
Weight |
300g |
|
|
installation |
Rack-mount |
|
FAQ
1.Q: Cannot search the video file when playback video
A: Please check if the SD card is broken;
Please check retrieval time of video file and check the system time of camera;
2. Q: When check live video, suggesting that the password is wrong
A: Please check if the remote access password is right as it is set when adding camera. If the password is wrong, please correct it by clicking camera list and choosing edit；If forget the password, press
“Reset” button and restore the device to factory default setting (default setting is blank. Need to set up
new password when adding camera at the first time, otherwise, remote access will not be possible)；
3. Q: Device is offline on the device list
A: Please check if the internet is working and if the internet LED is on.
Please check if the router network is working
